OVERVIEW
Key Features
* Converts stereo audio to balanced or unbalanced mono audio
* Stereo inputs and mono outputs on captive screw connectors
* ±6 dB output gain switch
* Rack-mountable 1U, quarter rack width metal enclosure
DESCRIPTION

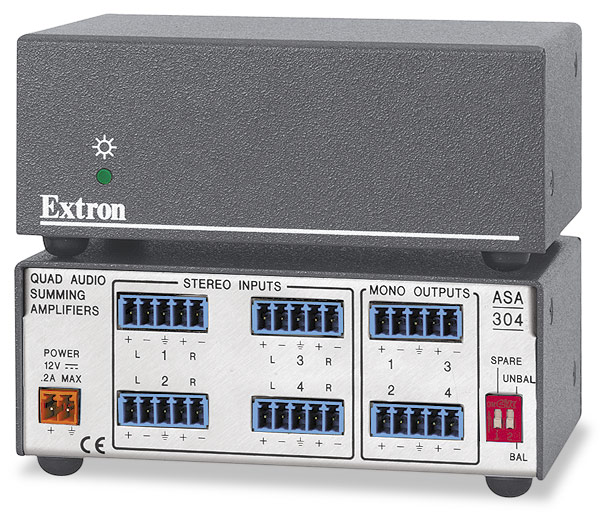

The Extron ASA 304 is a high performance Audio Summing Amplifier that converts two-channel stereo audio signals to balanced or unbalanced mono audio signals. It is ideal for summing stereo signals for use in mono multi-speaker PA systems in churches, halls, arenas, stadiums, and other environments where stereo signals would result in cancellation.The ASA 304 offers four independent, active audio summing amplifiers in a single enclosure. It converts stereo audio signals from four different sources to mono audio signals and includes switch-selectable gain to achieve different output gain levels. The ASA 304 accepts balanced or unbalanced stereo input signals on captive screw connectors and provides balanced/unbalanced outputs on captive screw connectors. This high performance summing amplifier enables long cable runs and immunity from interference and noise normally associated with the use of unbalanced audio equipment in professional integration projects.The ASA 304 is housed in a 1U, quarter rack width metal enclosure, is easy to install in small spaces, and is rack and under-desk mountable. It can also be mounted at the projector using the Extron series of PMK - Projector Mounting Kit products.
Features
* Four, independent active audio summing amplifiers in a single enclosure
* Converts stereo audio to balanced or unbalanced mono audio
* Stereo inputs and mono outputs on captive screw connectors
* ±6 dB output gain switch
* Rack-mountable 1U, quarter rack width metal enclosure
* Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
