OVERVIEW
Key Features
* De-embeds up to eight channels of digital audio from a 3G-SDI, HD-SDI, or SDI digital video signal
* Eight line level, balanced/unbalanced analog audio outputs
* Automatically adapts to SMPTE and ITU digital video standards for 3G-SDI, HD-SDI, and SDI
* Supports data rates from 270 Mbps to 2.97 Gbps
* Supports SDI groups 1/2 or 3/4
* Buffered 3G-SDI/HD-SDI/SDI loop-through
DESCRIPTION

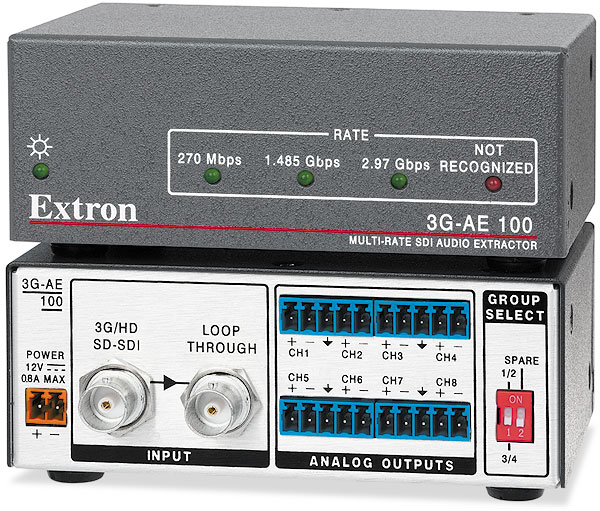

The Extron 3G-AE 100 is a high performance audio extractor for 3G-SDI, HD-SDI, and SDI digital video signals. It automatically detects the incoming 3G-SDI/HD-SDI/SDI data rate, de-embeds up to eight channels of digital audio, and then converts it to line level, analog audio. The 3G-AE 100 features an equalized 3G-SDI/HD-SDI/SDI input and eight analog audio outputs that are switch-selectable to support audio groups 1 through 4. A buffered and reclocked 3G-SDI/HD-SDI/SDI loop-through allows two 3G-AE 100 units to be cascaded to support up to 16 channels of embedded audio. The 3G-AE 100 is ideal for use in applications where digital audio must be extracted from a 3G-SDI, HD-SDI, or SDI signal and converted to line level, analog audio.The 3G-AE 100 de-embeds eight channels of digital audio from SDI groups 1/2 or 3/4, and outputs it as line level, analog audio on captive screw connectors. Two units can be cascaded to support applications in which 16 channels of audio are required. In addition, the 3G-AE 100 features automatic input equalization up to 600 feet (185 meters) for HD-SDI and SDI signals, and up to 500 feet (150 meters) for 3G-SDI on Extron RG6 cables. Input cable equalization reduces the need for additional signal conditioning equipment by compensating for weak source signals or signal loss from a long input cable. A convenient front panel data rate indicator provides visual confirmation of input data rates for quick identification of the incoming digital video signal.
Housed in a rack-mountable 1U, quarter rack width metal enclosure, the 3G-AE 100 is easily integrated into both new and existing AV systems.
Features
* De-embeds up to eight channels of digital audio from a 3G-SDI, HD-SDI, or SDI digital video signal
* Inputs: 3G-SDI/HD-SDI/SDI on BNC, buffered loop-through 3G-SDI/HD-SDI/SDI on BNC
* Outputs: Balanced/unbalanced line level, analog audio outputs on 5-pole captive screw connectors
* Eight line level, balanced/unbalanced analog audio outputs
* Automatically adapts to SMPTE and ITU digital video standards for 3G-SDI, HD-SDI, and SDI
* Supports data rates from 270 Mbps to 2.97 Gbps
* Supports SDI groups 1/2 or 3/4 — The 3G-AE 100 enables SDI group selection to de-embed eight channels of audio from SDI groups 1/2 or 3/4.
* Buffered 3G-SDI/HD-SDI/SDI loop-through — A buffered and reclocked 3G-SDI/HD-SDI/SDI loop-through allows two 3G-AE 100 units to be cascaded to support up to 16 channels of embedded audio.
* Two units can be cascaded to support up to 16 channels of embedded audio
* Automatic input cable equalization improves signal transmission distances:HD-SDI and SDI - up to 600 feet (185 m) on RG63G-SDI - up to 500 feet (150 m) on RG6
* Input rate presence LED indication — A convenient front panel data rate indicator allows visual confirmation of 3G-SDI, HD-SDI, and SDI input data rates for quick visual identification of the incoming digital video signal.
* Rack-mountable 1U, quarter rack width metal enclosure
* Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
