OVERVIEW
* Extend HDMI signals over a Ethernet* Network or 120m using a single CAT6 Cable
* Supports 1 to 1 and 1 to Many configurations via Fast Ethernet*
* Ideal for digital signage, presentations and demonstrations
* Supports resolutions up to 1080p with 8 bit colour and HDCP
DESCRIPTIONS
Designed to distribute HD video signals over long distances the HDMI over IP Extender is a cost effective solution for digital signage, presentation and demonstration applications. The HDMI over IP Extender is capable of broadcasting 1080p Full HD over a standard gigabit network*, in 1 to 1 and 1 to many configurations.
Using up to 4 layers of active network equipment to distribute signals the HDMI over IP Extender is ideal for distributing video content throughout large buildings such as schools, hotels, hospitals, shops, shopping centres and business premises.
The HDMI over IP Extender is sold as a 1 to 1 solution, with additional Receivers available separately, providing the ultimate in flexibility at the point of installation and the ability to easily expand the installation at a later date.
In addition the Transmitter and Receiver units can be directly connected using a CAT6 cable of up to 120m, to create a low cost 100m HDMI and IR Extender.
Please Note: The HDMI over IP Extender distributes in full 1080p resolution using a form of video compression which is barely perceptible. Presentations and static desktop displays/images will have a similar loss of sharpness similar to standard JPEG compression.
Package Contents:
* HDMI over IP Ethernet Extender (1 x Transmitter & 1 x Receiver)
* 1 x IR Emitter Cable
* 1 x IR Receiver Cable
* 2 x Multi-Country 5V Power Supply (UK, EU, US, AUS)
* LINDY Manual
HDMI
* Supports HDTV resolutions up to Full HD 1080p at 8 bit colour depth
* Supports HDCP protected content
* No Support for 3D content!
* Supports 2 channel PCM audio
Ethernet
* Requires Fast Ethernet or higher network equipment
* All network components/switches MUST support the UPnP protocol (IP addresses are not assigned!)
* Requires a dedicated network/dedicated VLAN
IR
* Transmits 30-50kHz IR Signals
Device Specification
* Robust metal housing
* Dimensions: 10 x 6 x 2.6cm (each unit)
* Weight: 450g

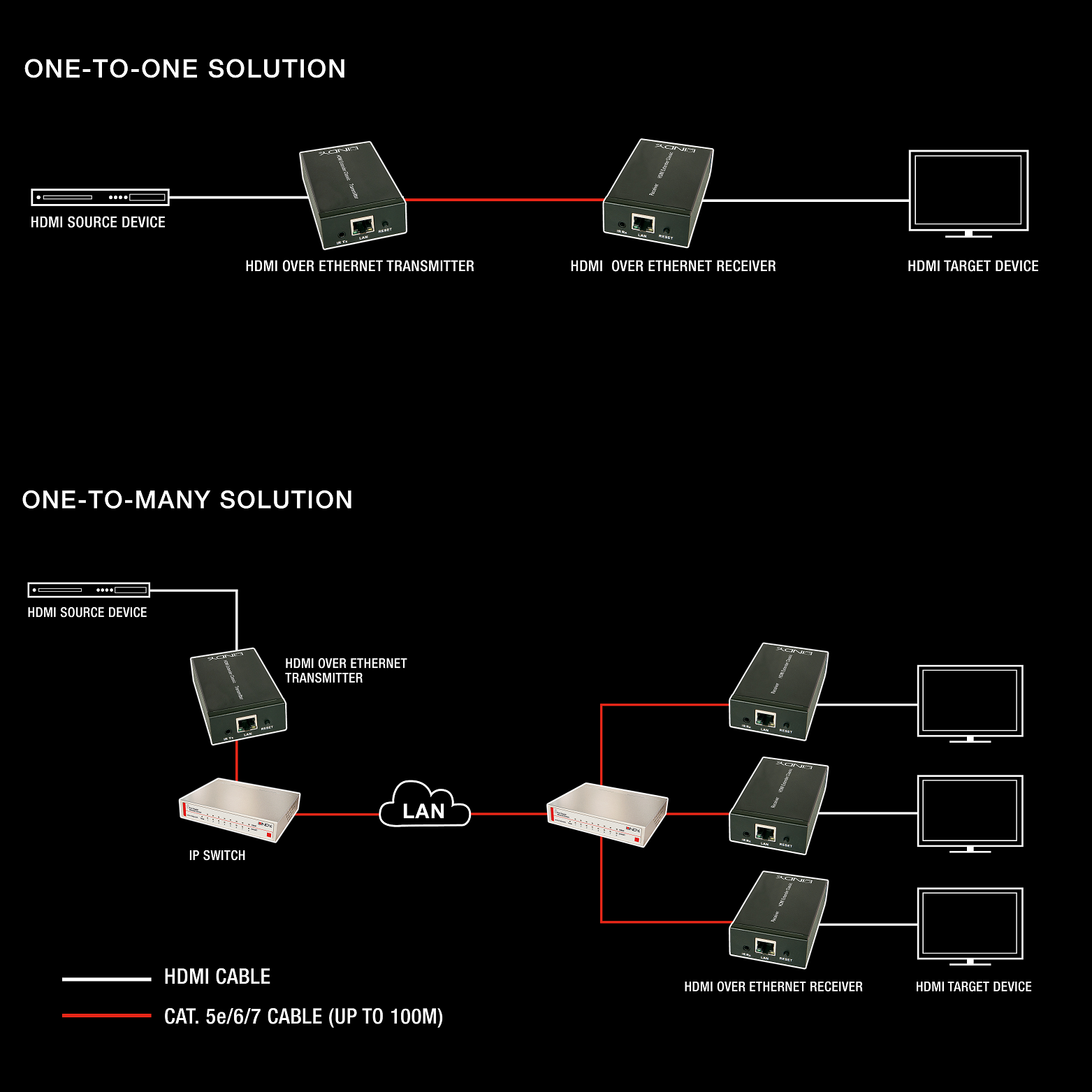

SOLUTION
