G24 Video Wall Controllers

Call for price

SEADA

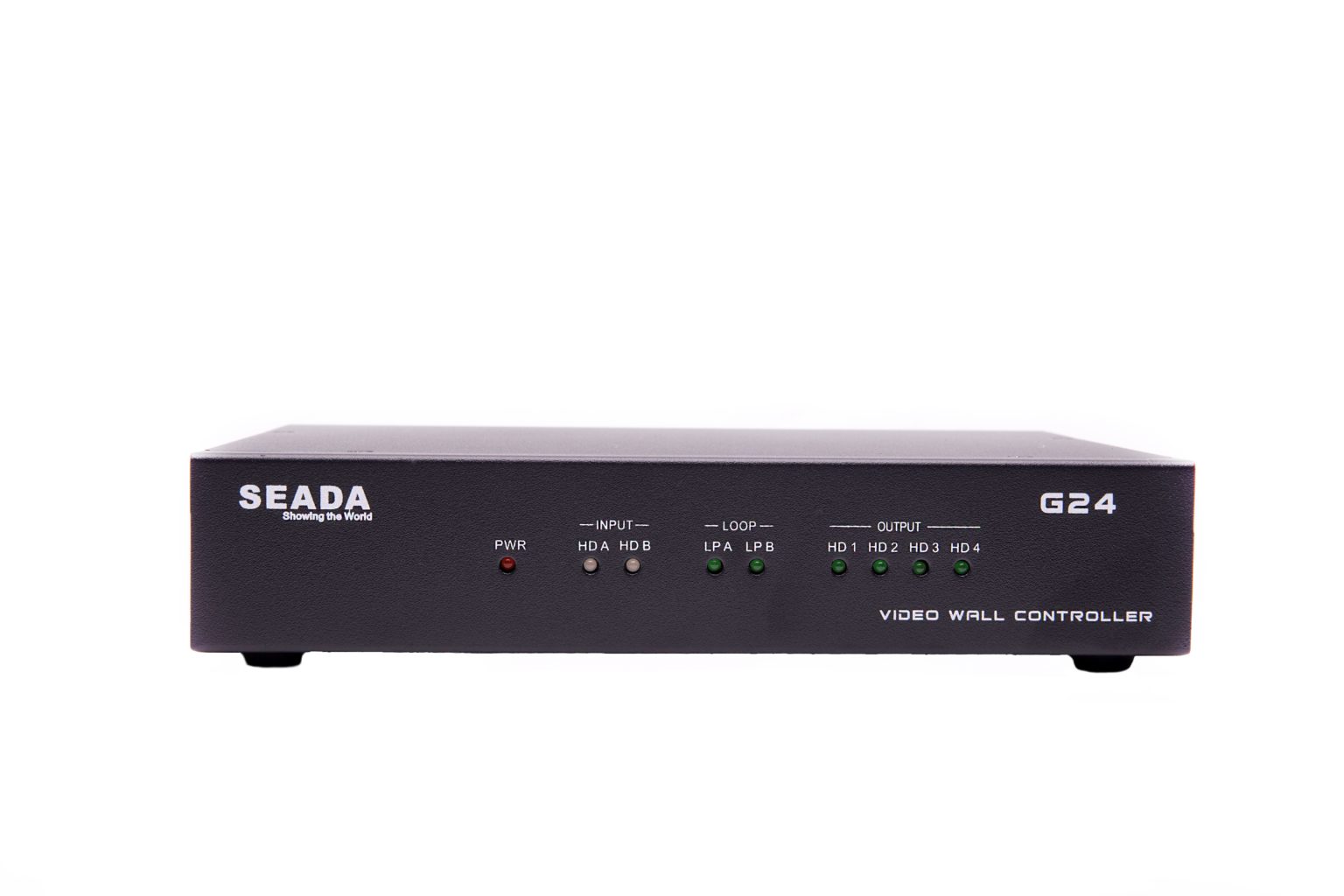

SEADA Videowall Controller

Description
Reviews

Description

Key Features
* 2 HDMI 2.0 inputs with embedded audio
* 4 HDMI 2.0 outputs with embedded audio
* Supports 180 degree rotation
* Supports up to 4K60 4:4:4 inputs
* Supports up to 4K60 4:4:4 outputs
* Support up and downscaling on each output
* Supports daisy chain
* Support PIP on video wall
* Support 2 channels HDMI loop out
* Balanced analog audio output
* L/R analog audio output
* Supports audio embedding and de-embedded
* Toslink digital audio outputs
* Support Bezel Compensation
* Supports CEC management
* Supports EDID management
* Custom pre-set layouts
* HDCP compliant
* Supports adjusting display settings such as Contrast and Saturation remotely
* Controllable via IP/serial port

Công nghệ nghe nhìn KTP - Nhà phân phối sản phẩm SEADA tại Việt Nam.

Liên hệ tư vấn giải pháp và thiết bị nghe nhìn: 098.525.9993, 0878.151.668

OVERVIEW

The G24 video wall controller accepts up to 2 HDMI inputs and displays them on 4 different displays, each with a resolution up to 4K@60fps, 4:4:4. G24 not only allows the user to display a single input across all four screens, but also to display different input videos onto different screens working like a matrix switcher.

G24 is able to rotate the output 180 degree which enables users to form a narrow bezel video wall with low-cost stand TVs.

The G24 Controller can be easily configured via IP/serial port connection to a Windows based PC, running the management software, or through 3rd party controllers. The Windows based software provides a user-friendly GUI, greatly simplifying the system configuration. G24 controllers can run standalone without the connection to the control PC, once configured.

SPECIFICATIONS

DIMENSIONS(WDH) (MM)	218MM X 146MM X 43MM
INPUT RESOLUTION	UP TO 3840 X 2160@60FPS 4:4:4
INPUT FORMAT	HDMI2.0
OUTPUT RESOLUTION	UP TO 3840 X 2160@60FPS 4:4:4
OUTPUT FORMAT	HDMI 2.0
RS232 SETTINGS	BAUD RATE: 57600, DATA BIT:8, STOP BIT: 1, NO PARITY
ANALOG AUDIO OUTPUT INTERFACE	5-WAY PHOENIX CONNECTORS
DIGITAL AUDIO OUTPUT INTERFACE	MINI TOSLINK JACKETS
AUDIO FORMAT	2.0 CHANNEL, 5.1 CHANNEL, LPCM, DOLBY, AC3, DTS
HDCP	HDCP 2.2
POWER SUPPLY	12V/3A
VIDEO WALL CAPABILITIES	YES
WEIGHT	2.1 KG
OPERATING TEMPERATURE RANGE	0~40 DEGREES CENTIGRADE
OPERATING HUMIDITY RANGE	10%-90% NON-CONDENSING
STORAGE TEMPERATURE RANGE	-20~60 DEGREES CENTIGRADE
STORAGE HUMIDITY RANGE	10%~90% NON-CONDENSING
CONTROL INTERFACE	10/100/1000M ETHERNET PORT OR RS232
WARRANTY	2 YEARS
