OVERVIEW
Key Features
* I/O sizes from 8x8 to 72x72
* Compatible with all Extron FOX Series transmitters and receivers
* SpeedSwitch® Technology provides exceptional switching speed for HDCP-encrypted content
* Integrates easily into a wide range of 4K environments
* Multimode and singlemode I/O boards available
* 3G-SDI I/O board available
DESCRIPTION

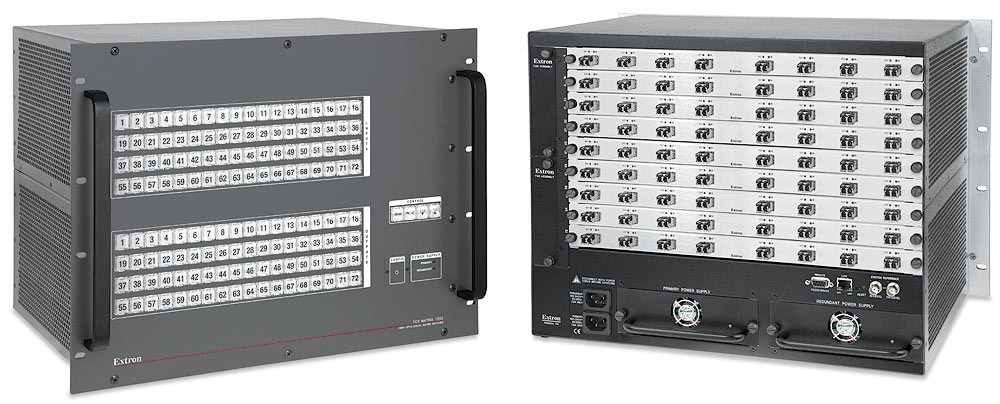

The Extron FOX Matrix 7200 is a high performance, modular fiber optic matrix switcher for complete, end-to-end digital AV signal transmission and routing over fiber optic cable. The matrix switcher is expandable from 8x8 up to 72x72, and is fully compatible with FOX Series transmitters and receivers. Supporting video resolutions up to 4K, it features very high speed, all‑digital switching of DisplayPort, HDMI, DVI, 3G‑SDI, RGB, HD component, and standard definition video. Equipped with the integration-friendly features common to Extron matrix switchers, together with hot-swappable I/O boards and fan, real-time system monitoring, and redundant, hot-swappable power supplies, the FOX Matrix 7200 delivers highly reliable, enterprise-wide switching of fiber optic AV and control signals for mission-critical environments.
- Fiber Matrix Architecture
- Flexible I/O Configuration
- Streamlining Migration to 4K Video Distribution
- Designed for Secure Systems
- 3G-SDI Signal Switching and Distribution
- Familiar, Integrator Friendly Matrix Switcher Features
- Self-Monitoring and Hot-Swappable
- Control
Note: FOX I/O 88 boards, part numbers 70-791-01 and 70-791-02, and replacement power supply, part number 70-704-01, are designed for use with the previous versions of the FOX Matrix 7200 Frame, part number 60-1011-01.
Full description in PDF Format
