DESCRIPTION

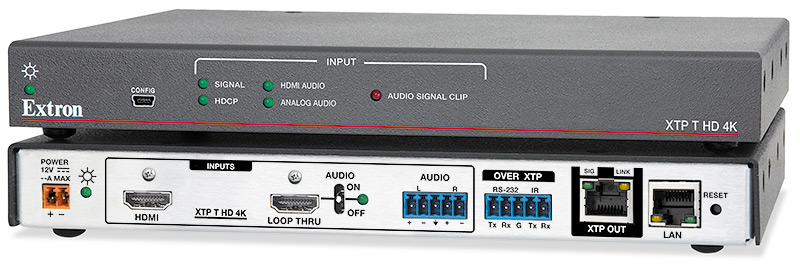

The Extron XTP T HD 4K is a transmitter for extending video, audio, bidirectional control, and Ethernet over a shielded CATx cable. This HDCP 2.2 compliant transmitter supports video signals at resolutions up to 4K. For streamlined integration, it features an HDMI loop-through with selectable audio control and enables embedding of separate analog stereo audio signals. Ethernet extension and insertion of bidirectional RS‑232 and IR provide LAN access and remote AV device control. Signals can be sent up to 330 feet (100 meters) over shielded twisted pair cable. The XTP T HD 4K supports remote power and is ideal for XTP Systems® that require long-distance transmission from a remote location.
The XTP T HD 4K transmitter uses Extron all-digital technology to deliver pixel-perfect video signals at resolutions up to 4K. It supports HDMI 2.0 specifications that include data rates up to 10.2 Gbps, Deep Color up to 12‑bit, 3D, and HD lossless audio formats. To ensure device compatibility and optimal signal transmission between devices, DDC channels are actively buffered, maintaining continuous EDID and HDCP communication with the source and display. As an added benefit, the XTP T HD 4K provides an active HDMI output that includes selectable support of embedded audio. This allows connection of a local monitor for operation visibility and troubleshooting.
Built for Professional Integration
To enhance and simplify integration of digital and analog AV devices, XTP endpoints utilize two Extron technologies: EDID Minder and Key Minder. EDID Minder automatically manages EDID communication between input sources and display devices, to ensure that sources power up properly and reliably send content for display. For HDMI and DisplayPort signals with protected content, Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching. If HDCP-encrypted content is sent to a non‑compliant display, a full-screen green signal is transmitted to the destination, providing immediate visual confirmation that protected content cannot be viewed on the selected display.
In addition to high performance video, the transmitter extends audio signals over the one cable. The XTP T HD 4K supports multiple embedded digital audio formats with HDMI embedded audio available on the HDMI connector. It includes the capability to embed separate balanced/unbalanced analog stereo audio signals in place of HDMI-embedded audio for extended transmission. To allow precise control of the audio, the transmitter features audio input gain and attenuation adjustment and muting capabilities.
The XTP T HD 4K includes an RS‑232 and IR insertion port, allowing bidirectional control of an AV device over the one CATx cable. This feature simplifies integration with a control system for managing the source device. In addition, centralized 10/100 Ethernet communication can be implemented via the Ethernet extension port to reduce the number of independent network drops required within a system.
To further simplify integration, the transmitter can be powered by the XTP CrossPoint® matrix switcher over the same twisted pair cable that carries the AV and control signals. This capability streamlines installation of remote endpoints by eliminating the need to provide AC power to the device. Housed in a 1" (2.5 cm) high, half rack width metal enclosure, the remote powering capabilities and low-profile design of the XTP T HD 4K transmitter allow for discreet placement in space-challenged environments.
The XTP T HD 4K can be used with an XTP receiver or scaling receiver for simple point-to-point installations or in combination with an XTP CrossPoint® matrix switcher for AV signal switching and distribution applications. Integrated with an XTP CP 4i 4K I/O board mounted in the matrix switcher, the XTP T HD 4K provides streamlined transmission of 4K video. This design takes advantage of system level controls and the ability to extend inserted RS‑232 and IR between the equipment room and a remote endpoint.
Extron recommends Extron-certified XTP DTP 24 shielded twisted pair cable, shielded RJ-45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron XTP Systems. The XTP DTP 24 cable is certified to 475 MHz, and utilizes a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.
Extron XTP Systems
Extron XTP Systems provide a completely integrated switching and distribution solution for multiple digital and analog formats. They support local connectivity as well as extended transmission capability for sending high resolution video, audio, RS‑232, and Ethernet up to 330 feet (100 meters) over a shielded CATx cable and up to 10 km (6.21 miles) over fiber optic cable. Each system is HDCP compliant and delivers ultra-fast, highly reliable digital switching with Extron's SpeedSwitch® Technology.
At the heart of a system is an XTP CrossPoint matrix switcher. The modular matrix switchers are expandable from 4x4 to 64x64, depending on frame size, and can be populated with a wide variety of XTP I/O matrix boards. Input and output boards provide direct HDMI, 3G-SDI, DVI, VGA, video, and audio connections to local sources and displays, and signal extension to remote endpoints when using XTP transmitters and receivers. The matrix switcher can also provide power to a remote XTP device over CATx cabling, depending on transmitter model.
The online XTP System Builder gives convenient access for complete system design. The tool also features a printable bill of materials, pricing, and quote submittal. Once the order is confirmed and received, the included XTP System Configuration Software enables easy setup and configuration right out of the box.
To configure, operate, and monitor the system in real time, user-friendly control software offers a complete view of all XTP devices from a computer. With hot‑swappable modular components, a wide selection of XTP transmitters and receivers, and advanced 24/7 system monitoring, XTP Systems are designed to provide continuous, trouble-free operation in the most critical applications.
Features
* Transmits video, audio, bidirectional RS‑232 and IR, and Ethernet up to 330 feet (100 meters) over a shielded CATx cable — The XTP T HD 4K provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
* Supports computer and video resolutions up to 4K — Supports digital signal extension up to 330 feet over a shielded twisted pair cable, maintaining superior image quality at the highest resolutions.
* HDMI loop-through with selectable audio control — The XTP T HD 4K transmitter features an active HDMI output with support for embedded audio for connection to a local monitor.
* HDCP 2.2 compliant — Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
* Remote power capability — For simplified installation, the transmitter can be remotely powered by the XTP matrix switcher over the twisted pair connection.
* Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
* Compatible with CATx shielded twisted pair cable — The XTP T HD 4K supports a maximum transmission distance of 330 feet (100 meters) for all compatible resolutions when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid center conductor sizes of 24 AWG or better is recommended for optimal performance.
* Bidirectional RS‑232 and IR insertion for AV device control — Bidirectional RS‑232 control and IR signals can be inserted into the XTP output, allowing a remote device to be controlled without the need for additional cabling.
* Supported HDMI 2.0 specification features include data rates up to 10.2 Gbps, Deep Color up to 12‑bit, 3D, and HD lossless audio formats
* User-selectable HDCP authorization — Allows individual inputs to appear HDCP compliant or non‑HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non HDCP mode.
* EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.
* Key Minder® continuously verifies HDCP compliance for quick, reliable switching — Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source to multiple displays.
* HDCP Visual Confirmation provides a green signal when encrypted content is sent to a non-compliant display — A full-screen green signal is sent when HDCP-encrypted content is transmitted to a non HDCP compliant display, providing immediate visual confirmation that protected content cannot be viewed on the display.
* Ethernet extension — Centralized 10/100 Ethernet communication can be implemented via an Ethernet pass-through port to reduce the amount of independent network drops required within a system.
* Internal color bars test pattern with or without audio for setup and calibration
* Supports multiple embedded audio formats — The XTP T HD 4K is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
* Selectable analog stereo audio input embedding — By embedding stereo audio into the signal stream, the transmitter supports balanced/unbalanced audio for extended transmission. This feature enables direct connection of separate stereo audio signals from a laptop, Blu-ray Disc player, or other device.
* Audio input gain and attenuation — Allows the level of gain or attenuation to be set, eliminating noticeable volume differences when switching between sources.
* Supports EDID and HDCP transmission — DDC channels are actively buffered, allowing continuous communication between source and display.
* LED indicators for signal presence, HDCP, and power — Provides visual indication of signal presence, HDCP, audio signal clipping, and power for real-time feedback and monitoring of key performance parameters.
* RJ-45 signal and link status LED indicator for XTP ports — Provides a means for validating signal flow and operation from transmitter to receiver, allowing quick identification of connectivity issues.
* Compatible with all XTP products — XTP Systems provide a flexible signal switching and distribution solution that is completely integrated, ensuring reliable routing of multiple digital and analog formats.
* Front panel USB configuration port
* Easy setup and commissioning with Extron XTP System Configuration Software
* New JITC Certified — Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
* 1" (2.5 cm) high, half rack width metal enclosure — Compact, low profile enclosure for discreet placement and concealment.
* Includes LockIt® HDMI cable lacing brackets
* Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
