DESCRIPTION

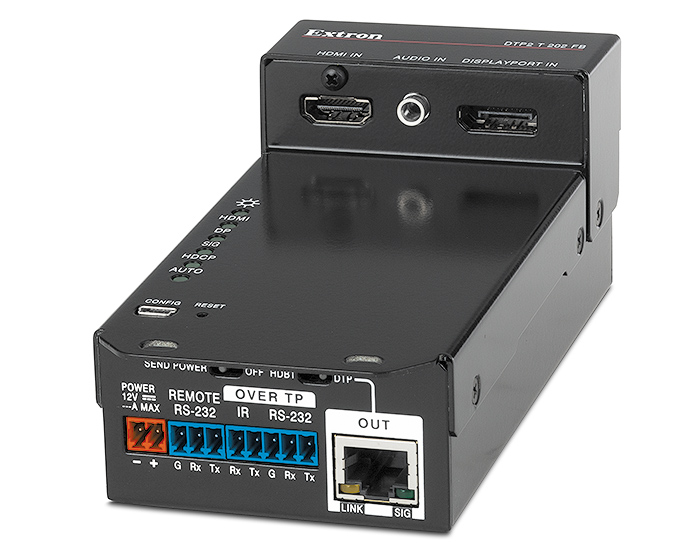

The DTP2 T 202 FB is a two-input transmitter for sending DisplayPort, HDMI, audio, and control up to 330 feet (100 meters) over a shielded CATx cable. Its unique form factor provides a flexible floor box mounting solution that is compatible with offerings from OBO Bettermann, MK by Honeywell, Electraplan, and PUK. The DTP2 T 202 FB supports video resolutions up to 4K/60 at 4:4:4 chroma sampling, and complies with HDCP 2.2. It features analog stereo audio embedding plus automatic switching between inputs for easy operation in unmanaged locations. Designed for DTP® Systems, the DTP2 T 202 FB enables discreet placement in a floor box under a lectern, table, or wherever needed to meet application requirements.
The DTP2 T 202 FB provides reliable switching and transmission of DisplayPort and HDMI video at data rates up to 18 Gbps, along with support for HDR, Deep Color up to 12‑bit, 3D, and embedded HD lossless audio formats. For simplified operation, it can automatically switch between the sources. The DTP2 output can be configured to send video and embedded audio, plus bidirectional RS‑232 and IR signals, to an HDBaseT™-enabled display.
Comprehensive EDID Management
To ensure professional AV systems perform as designed, it is crucial that EDID communication between video sources and sink devices is managed correctly. Correct management of EDID allows source equipment to send video and audio signals in formats and parameters that best match display device capabilities. Mishandling of EDID could result in suboptimal image quality, no image, and poor sound. The DTP2 T 202 FB offers a suite of Extron-exclusive tools and capabilities for complete control over EDID management. The EDID Minder software function offers a library of EDID files that can be applied to any video input. Additional EDID can be captured from connected displays or uploaded by the user. EDID Minder is easily accessible in PCS software, and EDID Manager 2.0 is a freely downloadable Windows utility for viewing and editing EDID files. This software enables video format optimization, chroma sampling and color bit depth manipulation, and adjustment to audio capabilities. Edited files may be saved, added to the library, and easily applied to devices within the system.
Features that Streamline Integration
The DTP2 T 202 FB automatically adjusts color bit depth based on the display EDID to prevent color compatibility conflicts between a source and the display. Front panel LED indicators provide immediate visual confirmation of HDCP authentication and signal presence for each input and the output. If HDCP-encrypted content is transmitted to a non‑compliant display, a full-screen green signal provides immediate visual confirmation that protected content cannot be viewed on that display.
This DTP2 transmitter provides a connection for sending stereo analog audio to a DTP‑enabled matrix switcher, switcher, or signal processor. Analog stereo audio signals can be selectively embedded onto the video output signal. The DTP2 T 202 FB can be set to pass embedded digital audio or automatically embed the analog audio when no digital audio is detected. The analog audio to be embedded can be assigned to a specific video input, or it can be set to follow the input switch.
The DTP2 T 202 FB provides other convenient, integrator-friendly features designed to help simplify installation. It supports simultaneous transmission of bidirectional RS‑232 and IR signals from a control system for AV device control. Also, it can be remotely powered over the shielded twisted pair cable by a DTP2‑enabled product. Alternatively, it can be configured to provide power to the connected DTP2 receiver, allowing both devices to share one power supply.
Configuration of the DTP2 T 202 FB is made simple with Extron’s PCS - Product Configuration Software with a user-friendly GUI that is very easy to navigate. This software application allows for expedited setup and commissioning, real-time operation and monitoring, plus the ability to configure several units in the same session. In addition, internal Web pages provide system status and setting pages for device monitoring and troubleshooting using a standard browser.
DTP Family of Products
The DTP2 T 202 FB can be integrated with an Extron DTP CrossPoint® presentation matrix switcher, or other DTP-enabled products to support sources at remote locations.
Extron recommends Extron-certified XTP DTP 24 shielded twisted pair cable, shielded RJ‑45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron DTP Series products. The XTP DTP 24 cable is certified to 475 MHz, and utilizes a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.
Features
* Designed to mount in a variety of floor boxes — The unique form factor provides a flexible, floor box mounting solution that is compatible with offerings from OBO Bettermann - GB2 and GB3 slots, MK by Honeywell, Electraplan, and PUK.
* Transmits DisplayPort, HDMI, control, and analog audio up to 330 feet (100 meters) over a shielded CATx cable
* Inputs: One DisplayPort, one HDMI, one 3.5 mm stereo mini jack for audio
* Output: One DTP2 twisted pair output on RJ‑45
* Supports computer and video resolutions up to 4K/60 @ 4:4:4 — DTP2 T 202 FB supports digital signal transmission up to 330 feet (100 meters) over a shielded twisted pair cable and maintains superior image quality at the highest resolutions. Support of 4K/60 at 4:4:4 chroma sampling requires connection to a matching DTP2 product.
* Auto‑switching between inputs — Auto‑switching allows for simple, unmanaged installation within floor boxes. When multiple inputs are active, the switching priority is configurable.
* Analog stereo audio embedding
* Supports DisplayPort SST - Single Stream Transport data rates up to 21.6 Gbps
* Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12‑bit, 3D, and HD lossless audio formats
* Support for HDR – High Dynamic Range video — Enables greater contrast range and wider color gamut by providing the necessary video bandwidth, color depth, and metadata interchange capability for HDR video.
* HDCP 2.2 compliant — Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
* Remote power capability — For simplified installation, the transmitter can be remotely powered by a DTP2‑enabled product over the twisted pair connection. It can also be configured to provide power to the connected DTP2 receiver product.
* Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
* Compatible with CATx shielded twisted pair cable — The DTP2 T 202 FB fully supports a maximum transmission distance of 330 feet (100 meters) when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid center conductor sizes of 24 AWG or better is recommended for optimal performance.
* DTP2 output is compatible with HDBaseT‑enabled devices — The DTP2 output can be configured to send video and embedded audio, plus bidirectional RS‑232 and IR signals to an HDBaseT‑enabled display.
* Accepts additional analog stereo audio signals — The DTP2 T 202 FB accepts stereo analog audio signals for simultaneous transmission over the same shielded twisted pair cable.
* Audio input assignment — The analog audio input can be assigned to any video input, or it can be set to follow the input switch.
* Bidirectional RS‑232 and IR pass‑through for AV device control — Bidirectional RS‑232 control and IR signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
* CEC insertion — A control processor can insert CEC commands via SIS - Simple Instruction Set, to control devices connected at the HDMI output.
* Supports multiple embedded audio formats — The DTP2 T 202 FB is compatible with a broad range of multi‑channel audio signals, providing reliable operation with HDMI or DisplayPort sources.
* Compatible with all DTP receivers and DTP‑enabled products — Enables mixing and matching with desktop and wallplate receivers, as well as other DTP-enabled products to meet application requirements.
* User-selectable HDCP authorization — Allows the unit to appear HDCP compliant or non‑HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non‑HDCP mode.
* Comprehensive EDID management — Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 2.0 software is available for advanced EDID editing and creating custom EDID files.
* EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.
* HDCP Visual Confirmation — When HDCP-encrypted content is transmitted to a non‑HDCP compliant display, a full screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.
* HDMI to DVI Interface Format Correction — Automatically enables or disables embedded audio and InfoFrames, and sets the correct color space for proper connection to HDMI and DVI displays.
* Automatic color bit depth management — Automatically adjusts color bit depth based on the display EDID, preventing color compatibility conflicts between source and display.
* RS‑232 control port — Enables the use of serial commands for integration into a control system. Extron products use the SIS™ - Simple Instruction Set command protocol, a set of basic ASCII commands that allow for quick and easy programming.
* Front panel USB configuration port
* LED indicators for signal presence, HDCP, and power — Provides visual indication of system status for real‑time feedback and monitoring of key performance parameters.
* RJ‑45 signal and link LED indicators for DTP port — Provides a means for validating signal flow and operation, allowing quick identification of connectivity issues.
* Easy setup and commissioning with Extron's PCS - Product Configuration Software — Conveniently configure multiple products using a single software application.
* Includes LockIt® HDMI cable lacing brackets
* External Extron Everlast™ power supply included, replacement part #70‑1259‑01 — Provides worldwide power compatibility with high-demonstrated reliability and low power consumption.
