OVERVIEW
Key Features
* Accepts fiber optic signals from FOX Series transmitters and provides scaled HDMI video, stereo audio, and RS‑232 control signals
* High performance scaler provides selectable output resolutions up to 1920x1200, including HDTV 1080p/60 and 2K
* HDCP compliant
* Key Minder® continuously verifies HDCP compliance for quick, reliable switching
* HDMI, DVI, RGB, and HD component video upscaling and downscaling
* HDMI audio de-embedding with analog stereo outputs
DESCRIPTION

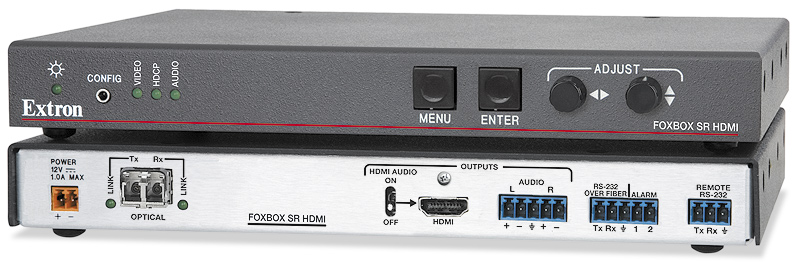

The Extron FOXBOX SR HDMI Fiber Optic Extender is a scaling receiver for long haul transmission of HDCP-compliant HDMI, audio, and RS-232 control signals over fiber optic cabling. Engineered for exceptional high resolution image performance, it uses Extron all-digital technology to deliver perfect pixel-for-pixel HDMI computer-video images up to WUXGA 1920x1200, including HDTV 1080p/60. Designed specifically for AV systems, the FOXBOX SR HDMI includes many integrator-friendly features such as Key Minder®, audio de-embedding, Auto Input Memory, and internal test patterns. A compact, low profile enclosure allows for discreet installation behind a flat-panel display.As part of the extensive FOX Series of fiber optic products from Extron, the FOXBOX SR HDMI is compatible with FOX Series HDMI, DVI Plus, DVI, VGA, and VGA/YUV transmitters. In addition, it can be used in combination with FOX Series switchers and matrix switchers to create an enterprise-wide HDCP-compliant distribution system. When paired with a FOX Series HDMI transmitter, the FOXBOX SR HDMI supports long distance transmission and scaling of HDCP content.
The FOXBOX SR HDMI is ideal for a wide range of long distance applications requiring scaling of high resolution content with the highest quality. The built-in scaler simplifies integration of sources and displays of different resolutions. The scaling receiver provides support for audio and RS-232 control signals, while allowing HDMI, DVI, RGB, and HD component video signals to be scaled to the optimal resolution for the display device. Because transmission of content is inherently secure and immune to outside interference, fiber applications are favored in government, military, and medical environments.
The FOXBOX SR HDMI features Key Minder to enhance and simplify integration with HDMI-equipped devices. For HDMI signals with protected content, Key Minder continuously authenticates HDCP compliance to support quick and reliable transmission across a fiber optic infrastructure. If HDCP-encrypted content is sent to a non-compliant display, the FOXBOX SR HDMI outputs a full-screen green signal, providing immediate visual notification that protected content cannot be viewed on the display.
The scaling receiver provides industry standard LC-type connectivity and is available in two formats: multimode and singlemode. The FOXBOX SR HDMI MM model supports multimode fiber at 850 nm, which is typically used within buildings or facilities with moderate-range transmission distances. The FOXBOX SR HDMI SM model supports singlemode fiber at 1310 nm, offering long-range transmission capability over extreme distances of up to 30 km (18.75 miles). It is used in large facilities such as airports and stadiums, as well as connecting over long distances between facilities such as at a university campus or medical complex.
Analog RGB/HD Component-to-HDMI Conversion
The FOXBOX SR HDMI is ideal for hybrid AV systems that include a variety of displays and sources at different resolutions. Pairing the FOXBOX SR HDMI with a FOX Series VGA or VGA/YUV transmitter provides easy conversion of analog RGB/HD component to HDMI for non-HDCP content. The built-in scaler ensures an optimal resolution for the display.
Features
* Accepts fiber optic signals from FOX Series transmitters and provides scaled HDMI video, stereo audio, and RS‑232 control signals — Accepts signals from Extron FOX Series HDMI, DVI Plus, DVI, VGA, and VGA/YUV transmitters for integration flexibility.
* Outputs: HDMI connector, unbalanced or balanced stereo audio on captive screw connector
* High performance scaler provides selectable output resolutions up to 1920x1200, including HDTV 1080p/60 and 2K — Scales HDMI, DVI, RGB, or HD component video to the optimal image resolution for the display. The output rate can be selected manually using the on-screen menu system or via RS-232 serial control.
* HDCP compliant
* Key Minder® continuously verifies HDCP compliance for quick, reliable switching — Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source to multiple displays.
* HDCP Visual Confirmation provides a green signal when encrypted content is sent to a non-compliant display — A full-screen green signal is sent when HDCP-encrypted content is transmitted to a non-HDCP compliant display, providing immediate visual confirmation that protected content cannot be viewed on the display.
* HDMI, DVI, RGB, and HD component video upscaling and downscaling — The FOXBOX SR HDMI features an advanced scaling engine for optimized upscaling and downscaling of high resolution computer-video signals.
* HDMI audio de-embedding with analog stereo outputs — Digital HDMI audio is made available as a balanced or unbalanced analog stereo signal on captive screw connectors.
* On-screen display — The FOXBOX SR HDMI features an on-screen display that provides status data pertaining to the currently selected input, facilitating easy adjustment of picture settings.
* Aspect ratio control — The aspect ratio of the video output can be controlled by selecting a FILL mode, which provides a full screen output, or a FOLLOW mode, which preserves the original aspect ratio of the input signal.
* Internal test patterns for calibration and setup — Test patterns include grayscale, crosshatch, crop pattern, color bars, and alternating pixels.
* Selectable HDMI audio pass-through — A rear panel toggle switch enables or disables audio signal pass-through on the HDMI output.
* Compatible with Extron FOX Series matrix switchers for signal distribution systems up to 1000x1000 and larger
* Compatible with Extron FOX Series switchers
* Compatible with Extron FOX Series HDMI, DVI Plus, DVI, VGA, and VGA/YUV transmitters
* Auto Input Memory — When activated, the receiver automatically stores position and detail settings based on the incoming signal. When that signal is detected again, the proper image settings are automatically recalled from memory.
* 30 user memory presets — In addition to Auto Memory, 30 user memory presets are available for saving and recall of position and detail information for multiple incoming sources. The ability to save and recall presets is useful in switcher-based environments.
* RS-232 control — Features rear panel RS-232 serial port for configuration and control.
* Real-time status LED indicators for troubleshooting and monitoring — Front and rear panel LEDs verify signal presence, HDCP authentication, link status, and power.
* Available as an 850 nm multimode model for moderate-range transmissions up to 2 km (1.25 miles) and a 1310 nm singlemode model for extreme distances up to 30 km (18.75 miles)
* Industry standard LC connectors provide reliable physical connectivity and precise fiber core alignment
* Alarm notification for fiber link loss — The unit can be set up to trigger an external control system for immediate notification when a fiber link is lost.
* JITC Certified — Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
* Includes LockIt® HDMI cable lacing brackets
* 1" (2.5 cm) high, half rack width metal enclosure
* Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
