Key Features* Receives HDMI plus control and analog audio up to 330 feet (100 meters) over a shielded CATx cable* HDMI input is ideal for connecting to a local source, such as a laptop or ShareLink wireless collaboration gateway* Supports computer and video resolutions up to 4K/60 @ 4:4:4* Auto-switching between inputs* Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12‑bit, 3D, HD lossless audio formats, and CEC* HDCP 2.2 compliant
The Extron DTP2 R 212 and DTP2 R 212 SA are digital twisted pair receivers that work with Extron DTP®-enabled products to send HDMI, audio, as well as bidirectional control signals up to 330 feet (100 meters) over a shielded CATx cable. Both models include one DTP2 input, one HDMI input for a local video source, and one HDMI output. These receivers support video resolutions up to 4K/60 at 4:4:4 chroma sampling, and comply with HDCP 2.2. Audio de-embedding and Ethernet remote control facilitate integration in professional environments. Integrator-friendly features include EDID Minder®, auto-switching between inputs, and bidirectional RS‑232 and IR pass-through for remote AV device control. The DTP2 R 212 SA model also features a built‑in Class D stereo amplifier, delivering 15 watts per channel.
The DTP2 R 212 and DTP2 R 212 SA enable the reliable, long distance transmission of HDMI signals at up to 18 Gbps, HDR, Deep Color up to 12‑bit, CEC, and embedded HD lossless audio formats. A local HDMI input allows connection of an additional video source at the display, which is beneficial in BYOD applications where the display may need to support both a local collaboration appliance and remote sources. The standard version DTP2 R 212 can also provide power to a remote DTP2 transmitter over the shielded twisted pair cable, enabling both devices to share one power supply.
To enhance and simplify integration of devices and to help ensure optimal system performance, the DTP2 receiver features Extron EDID Minder, which automatically manages EDID by maintaining continuous EDID communication with each source, ensuring that the sources power up properly and reliably output content for display.
Unique Audio FeaturesBoth DTP2 R 212 and DTP2 R 212 SA feature bass, treble, and volume controls. The stereo output is selectable for de-embedded or pass-through analog audio as a balanced or unbalanced signal on a captive screw connector. Analog audio signals are sent over the same shielded twisted pair cable as the video and control signals, eliminating the need for a separate cable run.
The DTP2 R 212 SA provides a built‑in Class D stereo amplifier that can drive surface mount or ceiling speakers. This offers a significant upgrade in sound quality over displays with built-in speakers, while simplifying integration. Volume is adjustable via SIS command or a remote volume controller such as the Extron VC 50, VCM 110, or VCM 200.

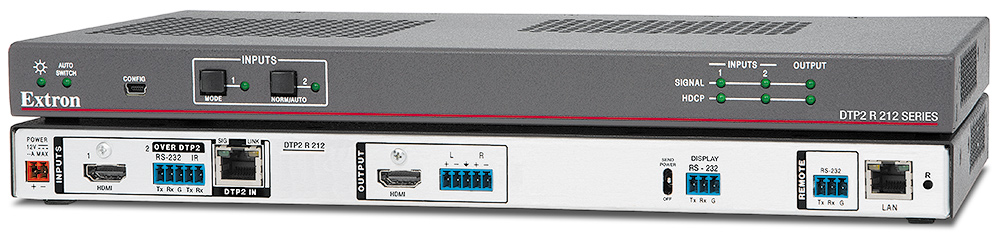

Control VersatilityThe DTP2 R 212 provides other convenient, integrator-friendly features designed to help simplify installation. The front panel features input selection buttons, and six LEDs that indicate input and output signal status along with HDCP presence. Auto-switching allows for simple, intuitive operation in locations such as within a lectern or with the display device. When multiple inputs are active, the switching priority is configurable. The unit also provides internal Web pages to monitor unit status.
Both DTP2 R 212 models provide Ethernet to RS‑232 insertion to the DTP2 port as well as the RS‑232 port dedicated for display control. This enables system level control of devices attached to the remotely connected DTP2 transmitter as well a locally connected display.
Set up and ConfigurationThe DTP2 R 212 models can be configured using Extron's PCS - Product Configuration Software with a user-friendly GUI that is very easy to navigate. This software application allows for expedited setup and commissioning, real-time operation and monitoring, plus the ability to configure several units in the same session. The DTP2 receiver can be integrated with an Extron DTP CrossPoint® presentation matrix switcher, or other DTP-enabled products to support devices at remote locations.
The receiver is housed in a 1" (2.5 cm) high, three-quarter rack width metal enclosure. The low profile enclosure of the DTP2 R 212 and DTP2 R 212 SA allows for discreet placement.
Extron recommends Extron-certified XTP DTP 24 shielded twisted pair cable, shielded RJ-45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron DTP Series products. The XTP DTP 24 cable is certified to 475 MHz and utilizes a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.
Features* Receives HDMI plus control and analog audio up to 330 feet (100 meters) over a shielded CATx cable — The DTP2 R 212 models provide high reliability and maximum performance on an economical and easily installed cable infrastructure.* HDMI and DTP2 inputs* HDMI input is ideal for connecting to a local source, such as a laptop or ShareLink wireless collaboration gateway* Supports computer and video resolutions up to 4K/60 @ 4:4:4 — Support of 4K/60 at 4:4:4 chroma sampling requires connection to a matching DTP2 product.* Auto-switching between inputs — Auto‑switching allows for simple, unmanaged installation. When multiple inputs are active, the switching priority is configurable.* Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12‑bit, 3D, HD lossless audio formats, and CEC* Support for HDR – High Dynamic Range video — Enables greater contrast range and wider color gamut by providing the necessary video bandwidth, color depth, and metadata interchange capability for HDR video.* HDCP 2.2 compliant — Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.* Stereo audio de‑embedding — Embedded HDMI two‑channel PCM audio can be extracted to the stereo captive screw output or the optional stereo amplifier output.* DTP2 R 212 SA model features energy efficient class D stereo amplifier* 90 dB signal-to-noise ratio with 0.1% THD+N — Ensures quiet, low-noise amplification and maintains audio signal integrity for exceptional performance in a compact, economical amplifier.* Extron-patented CDRS™ - Class D Ripple Suppression — CDRS is an Extron Patented technology that provides a smooth, clean audio waveform and an improvement in signal fidelity over conventional Class D amplifier designs. CDRS eliminates the high frequency switching ripple characteristic of Class D amplifiers, a source of RF emissions which can interfere with sensitive AV equipment such as wireless microphones.* Automatic clip limiter — Detects actual onset of clipping by comparing input and output waveforms. Gain is automatically reduced without audible artifacts to protect speakers from clipping distortion.* Selectable volume control — Allows the output volume to be remotely controlled via SIS or using an optional Extron VCM 110 or VCM 200 analog volume and mute controller or the VC 50 analog volume controller.* 30 watts rms output power: 2 x 15 watts @ 4 ohms or 2 x 8 watts @ 8 ohms — Used in combination with surface mount or ceiling speakers, the integrated amplifier provides a compact, economical audio solution for classrooms, meeting rooms and other applications, providing a significant step-up in sound quality over the speakers built into displays.* CEC - Consumer Electronics Control Capability — Standard, built-in CEC commands can be triggered to control displays or other AV devices connected to the HDMI or DTP2 outputs. The ability to control specific functions, such as power on/off, input selection, or volume level, is dependent on implementation by the device manufacturer.* Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance* Compatible with CATx shielded twisted pair cable — The DTP2 212 models fully support a maximum transmission distance of 330 feet (100 meters) for all compatible resolutions when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid center conductor sizes of 24 AWG or better is recommended for optimal performance.* Remote power capability — For simplified installation, the standard DTP2 R 212 without amplifier can be remotely powered by a DTP2 transmitter over the twisted pair connection. It can also be configured to provide power to the connected DTP2 transmitter.* Accepts additional analog stereo audio signals — The DTP2 R 212 models accept stereo analog audio from a DTP®-enabled product. This audio may be switched to the stereo captive screw output or the optional stereo amplifier output, independent of the video input selection.* Stereo audio embedding — Pass-through audio from the DTP input can be embedded onto the HDMI output* Bidirectional RS‑232 and IR pass-through for AV device control — Bidirectional RS‑232 control and IR signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.* RS‑232 insertion from the Ethernet control port — Saves system resources and simplifies installation by enabling a control processor to access remote RS-232 devices over Ethernet.* Display control RS-232 port — Serial commands inserted from Ethernet can be routed to this port to control a connected display or other device.* Supports multiple embedded audio formats — The DTP2 R 212 models are compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.* Compatible with all DTP transmitters and DTP-enabled products — Enables mixing and matching with desktop and wallplate transmitters, as well as other DTP-enabled products to meet application requirements.* User-selectable HDCP authorization — Allows the unit to appear HDCP compliant or non‑HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non‑HDCP mode.* Comprehensive EDID management — Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 2.0 software is available for advanced EDID editing and creating custom EDID files.* EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that the source powers up properly and reliably outputs content for display.* HDCP authentication and signal presence confirmation — Provides real-time verification of HDCP status for each digital video input and output. This allows for simple, quick, and easy signal and HDCP verification through front panel LEDs, RS‑232, USB, or Ethernet, providing valuable feedback to a system operator or helpdesk support staff.* HDCP Visual Confirmation — When HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full‑screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.* HDMI to DVI Interface Format Correction — Automatically enables or disables embedded audio and InfoFrames, and sets the correct color space for proper connection to HDMI and DVI displays.* Automatic color bit depth management — Automatically adjusts color bit depth based on the display EDID, preventing color compatibility conflicts between source and displays.* Output muting control — Provides the capability to mute the HDMI and/or analog audio output at any time.* Bass and treble controls* Selectable stereo or dual mono audio — Allows the user to choose between stereo output, or to sum the left and right channels into dual mono outputs using SIS command.* Ethernet monitoring and control — Enables control and proactive monitoring over a LAN, WAN, or the Internet.* Built‑in Web pages — Enables the use of a standard browser for device monitoring and troubleshooting over an intuitive Web interface.* Front panel security lockout — This feature locks out all front panel functions; all functions however, are available through USB or RS‑232 control.* RS‑232 control port — Enables the use of serial commands for integration into a control system. Extron products use the SIS™ - Simple Instruction Set command protocol, a set of basic ASCII commands that allow for quick and easy programming.* Front panel USB configuration port — Provides convenient access for information and firmware updates.* LED indicators for signal presence, power, and link status — Provide visual indication of system status for real-time feedback and monitoring of key performance parameters.* RJ‑45 signal and link LED indicators for DTP port — Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.* Easy setup and commissioning with Extron's PCS - Product Configuration Software — Conveniently configure multiple products using a single software application.* 1” (2.5 cm) high, three-quarter rack width metal enclosure — With a low profile enclosure, the device can be installed discreetly wherever needed.* Includes LockIt® HDMI cable lacing brackets* External Extron Everlast™ power supply included — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption* Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
