OVERVIEW
HBT150B-KIT is the HDMI2.0 18Gbps extender equipped with the latest HDBaseT technology on the market, which can extend high definition or 4K video /audio signal, RS[1]232, bi-directional IR between transmitter and receiver via a single CAT cable.
HBT150B-KIT is engineered especially for high-resolution, HDMI-compatible devices with HDMI connectors. This HDMI extender uses the advanced technology of HDBaseT to extend uncompressed 1080p or 4K video signals to an 150m or 120m distance respectively over a single category cable.
SPECIFICATIONS
| HDBT150-RX | RECEIVER |
|---|
| INPUTS |
1X HDBT,1X IR RX, 1X RS-232, 1 X MINI USB |
| OUTPUTS |
1X HDMI,1X IR TX, 1×3.5MM JACK |
| PSU |
DC 24V 1A OR POC |
| DIMENSIONS |
140MM [W] X 65MM [D] X 18MM [H] |
| NET WEIGHT |
155G |

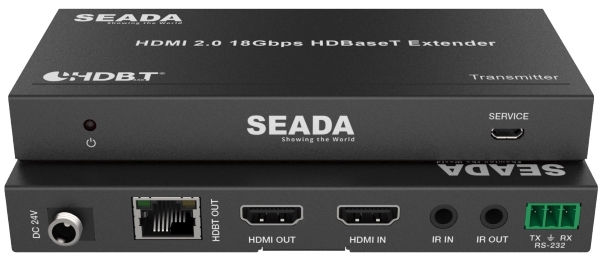

| HDBT150-TX |
TRANSMITTER |
| INPUTS |
1X HDMI, 1X IR RX, 1X RS-232, 1 X MINI USB |
| OUTPUTS |
1X HDBT,1X HDMI, 1X IR TX |
| PSU |
DC 24V 1A OR POC |
| DIMENSIONS |
140MM [W] X 65MM [D] X 18MM [H] |
| NET WEIGHT |
160G |
| OPERATING TEMPERATURE |
0~40% |
| STORAGE TEMPERATURE |
-20 ~ 60°C |
| HUMIDITY |
20% ~ 90% (NO CONDENSATION) |
