OVERVIEW

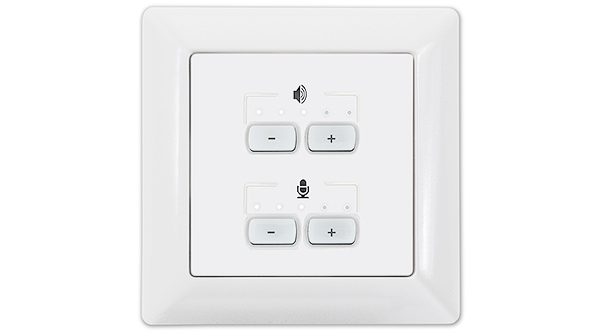

The Extron EBP VC2 EU eBUS® Button Panel is a fully-customizable AV system control interface for Extron eBUS-enabled control systems. This easy-to-use control panel connects to an IPCP Pro control processor to provide volume and microphone level controls. The EBP VC2 EU offers four customizable, soft-touch buttons that are backlit for easy operation in low-light environments. Bright LEDs provide at-a-glance level indication for both volume and microphone controls. Two eBUS ports are available for easy system expansion. eBUS button panels are linked to the control processor and to each other using a single cable that carries both power and communication. For applications worldwide, the EBP VC2 EU is compatible with Flex55 modules, mounting kits, and enclosures, as well as EU junction boxes.
Extron’s integration-friendly eBUS technology is based on a unique digital bus architecture that allows for easy control system expansion, greater design options, and future upgrades. As with our TouchLink Pro touchpanels, eBUS button panels are designed for use with any Extron IPCP Pro Series control processor. A single eBUS button panel can be used as the AV control interface for a smaller system or multiple button panels and touchpanels may be combined when a more elaborate control system is required.
eBUS button panels come in industry-standard form factors and multiple units may be linked together by a single cable that carries both power and communication. Since they have the same physical appearance as Extron’s broad range of MediaLink controllers, eBUS button panels can be used alongside them throughout a facility while preserving a consistent look and user experience. Buttons can be easily customized using the online Custom Button Builder application.
Features
* Fully customizable button panel integrates easily with an Extron Pro Series control system
* Compatible with Flex55 modules, mounting kits, and enclosures or EU junction boxes
* Four backlit, soft-touch buttons that can be customized using Extron’s Custom Button Builder
* Two eBUS® ports allow for quick system expansion and upgrades
* Compatible with all Extron IPCP Pro control processors
* Use a single button panel or combine multiple button panels to accommodate a broad variety of system designs
* eBUS button panels connect to the control processor and each other using a single cable that carries both power and communication
* DIP switches are used to set unique eBUS device addresses and minimize setup time
* eBUS diagnostic LED provides connection status for troubleshooting
* Volume adjustment buttons with LED level indication — Individual up and down buttons for audio level control with five LEDs that indicate current audio settings.
* Microphone adjustment buttons with LED level indication — Individual up and down buttons for microphone level control with five LEDs that indicate current audio settings.
* Built-in speaker provides audible feedback for button presses
* Removable captive screw connectors allow for quick installation
* Reset Button — Allows firmware to be reset to original factory settings.
* Supports the Extron Control App
* Includes black and white EU wall frames and mounting bracket
