OVERVIEW
Key Features
* 7” color touchscreen with 800x480 resolution and 18-bit color depth
* Full-motion video display for preview and monitoring using Extron twisted pair technology
* Compatible with all IP Link® control processors
* Power over Ethernet allows the touchpanel to receive power and communication over a single CAT 5-type cable, eliminating the need for a local power supply - PoE injector included
* Built-in speaker provides audio for the full-motion video preview and audible feedback from button presses
* Mounts on a wall, lectern, or any flat surface
DESCRIPTION

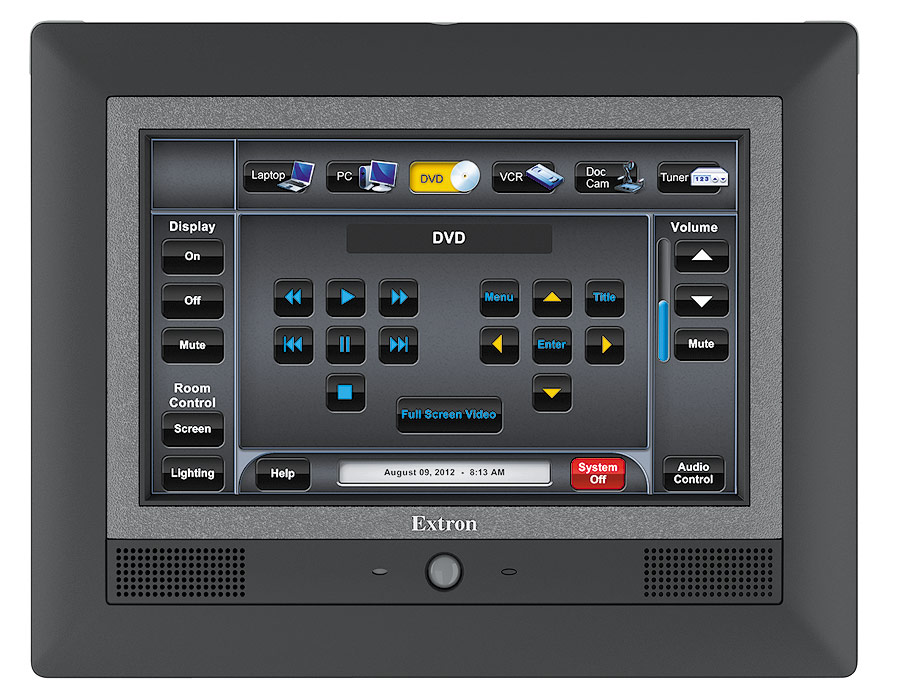

The Extron TLP 710MV TouchLink® Touchpanel is a fully configurable, 7” wall mount touchpanel featuring a contemporary design that complements the aesthetics of any environment. An integrated MTP twisted pair receiver accepts S-video or composite video and audio input signals over standard CAT 5 cable. Power over Ethernet - PoE allows the touchpanel to receive power via the Ethernet connector instead of an attached power source. The TLP 710MV is ideal for a wide variety of applications that require a compact, wall mount touchpanel with flexible connectivity and advanced control capabilities.
The TLP 710MV works in conjunction with any Extron IP Link® control processor and is designed for use in AV system applications that require complete, interactive control of conferencing systems, displays, switchers and source devices. The TLP 710MV and IP Link control processors communicate using a standard Ethernet network, allowing utilization of existing infrastructure, or easy installation with proven, reliable, and cost effective Cat 5 cable.GUI Configurator software makes configuration of the touchpanel easy, with no graphic design skills required. This software offers ready-to-use templates for single display rooms, dual display rooms, divisible rooms, multi-image systems and video conference suites. These designs may be used as is, or customized for the application by simply changing individual graphic elements.
Features
* 7” color touchscreen with 800x480 resolution and 18-bit color depth
* Full-motion video display for preview and monitoring using Extron twisted pair technology
* Built-in MTP – Twisted Pair receiver accepts either S-video or composite video signals over standard CAT 5-type cable — Provides integration flexibility and aids in cable management by minimizing the number of connections at the touchpanel.
* Compatible with all IP Link® control processors
* Power over Ethernet allows the touchpanel to receive power and communication over a single CAT 5-type cable, eliminating the need for a local power supply - PoE injector included
* Built-in speaker provides audio for the full-motion video preview and audible feedback from button presses
* Energy-saving features:
- Adjustable sleep timer puts touchpanel into sleep mode
- Motion detector wakes touchpanel
* Light sensor adjusts screen brightness as the ambient room lighting changes
* Configurable red and green status lights can be used to indicate a room's availability
* Automatic clock synchronization with controller for accurate time/date display
* Mounts on a wall, lectern, or any flat surface
* Supports the Extron Control App
