OVERVIEW
Key Features
* Certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
* Thin, flexible cable with low profile VGA connectors
* Pin 9 is passed through from end to end
* Designed for transmission of computer video, ID bit signals, and audio
* Terminated with high quality molded VGA connectors and 3.5 mm connectors for audio
* AWM 20276 rated
DESCRIPTION

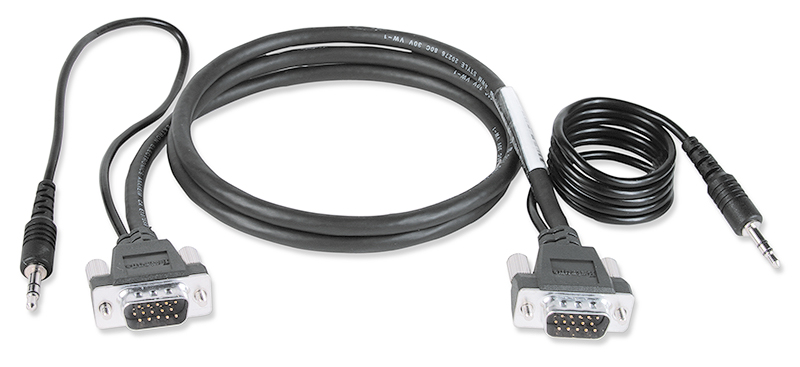

The Extron MVGA-A M-M flexible cable assemblies are designed for applications that require high performance transmission of VGA video and analog audio signals. All ID bits and +5VDC power on Pin 9 are passed through, provided the computer has a graphics card that complies with VESA DDC standard, version 3. The Extron MVGA-A M-M utilizes an extremely thin cable with low-profile 15-pin HD male molded connectors and audio cables with 3.5 mm mini plugs. On one side, the audio cable is 24 inches long, and on the other side, the audio cable is 8 inches long. The Extron MVGA-A M-M cable is certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures.
Features
* Certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
* Thin, flexible cable with low profile VGA connectors
* Pin 9 is passed through from end to end
* Designed for transmission of computer video, ID bit signals, and audio
* Terminated with high quality molded VGA connectors and 3.5 mm connectors for audio
* VGA shell grounded for ESD electrostatic discharge protection
* Injection mold with overall foil shield for improved EMI electromagnetic interference isolation
* AWM 20276 rated
Note: Cables up to 3 feet (90 cm) in length are measured neck-to-neck, between the strain reliefs. Cables longer than 3 feet (90 cm) are measured tip-to-tip, including connectors.
