OVERVIEW
Key Features
* Certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
* High performance cable designed for transmission of computer video, audio, and ID bit signals
* Pin 9 is passed through from end to end
* Terminated with high quality molded VGA male and female connectors and 3.5 mm connectors for audio
* VGA shell grounded for ESD electrostatic discharge protection
* Injection mold with overall foil shield for improved EMI - electromagnetic interference isolation
DESCRIPTION

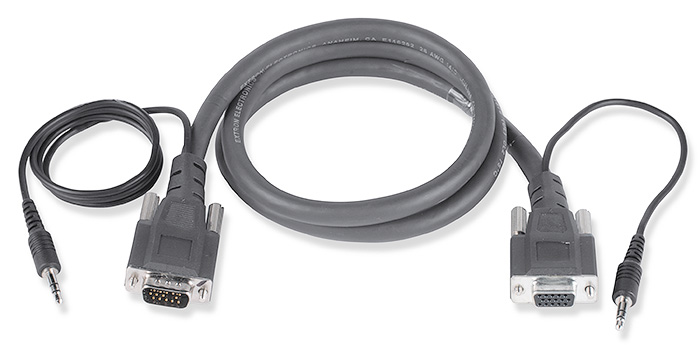

The Extron VGA-A M-F MD cable assemblies are designed for applications that require high performance transmission of VGA video and analog audio signals. All ID bits and +5VDC power on Pin 9 are passed through, provided the computer has a graphics card that complies with VESA DDC standard, version 3. The Extron VGA-A M-F MD uses Extron MHRVGA Cable with a 15-pin HD male molded connector and an audio cable with a stereo mini plug on one end and a 15-pin HD female molded connector with stereo mini plug on the opposite end. On one side, the audio cable is 24 inches long, and on the other side, the audio cable is 8 inches long.
Features
* Certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
* High performance cable designed for transmission of computer video, audio, and ID bit signals
* Pin 9 is passed through from end to end
* Terminated with high quality molded VGA male and female connectors and 3.5 mm connectors for audio
* VGA shell grounded for ESD electrostatic discharge protection
* Injection mold with overall foil shield for improved EMI - electromagnetic interference isolation
* Utilizes Extron MHRVGA Cable, part # 22-220-03
* NEC CM rated
Note: Cables up to 3 feet (90 cm) in length are measured neck-to-neck, between the strain reliefs. Cables longer than 3 feet (90 cm) are measured tip-to-tip, including connectors.
