OVERVIEW
Key Features
* Two 18 AWG conductors and a 22 AWG low capacitance shielded twisted pair with drain wire in a single jacket
* For transmission of control communications & power
* Non-Plenum rated
* SuperFlex jacket with sequential numbering
* Spool of 1,000 feet (305 m)
DESCRIPTION

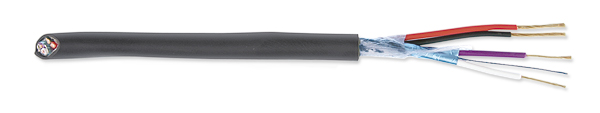

Extron CTL Series cable provides optimum signal transmission between control system components due to the low capacitance rating of its 22 AWG shielded twisted pair, which is utilized for critical control communication, and its two 18 AWG conductors for sending remote power to control panels. CTL Series cable is a universal control systems cable suited for the interconnection of Extron control products or third party control components.
Features
* Two 18 AWG conductors and a 22 AWG low capacitance shielded twisted pair with drain wire in a single jacket — This versatile cable features two color-coded 18 AWG, double-shielded conductors, two 22 AWG low capacitance shielded twisted pair cables, and a drain wire providing excellent performance and reduced interference
* For transmission of control communications & power — Extron Comm-Link cable is ideal for carrying control communications due to the low capacitance rating on the data pair wires, while the additional conductors transmit power and communications.
* Non-Plenum rated
* SuperFlex jacket with sequential numbering — Comm-Link cable features the smooth SuperFlex jacket with sequential numbering that enables quick calculation of the cable used and remaining on the spool.
* Spool of 1,000 feet (305 m)
Note: Part numbers 22-119-02, 26-461-01, 26-461-02, 26-461-03, 26-461-04 and 26-461-05 have been retired.
