Two Output VGA Distribution Amplifier - P/2 DA2xi

OVERVIEW

Key Features
* 350 MHz (-3 dB) RGB bandwidth, fully loaded
* Compatible with VGA-QXGA resolutions
* Gain and peaking controls
* Rack-mountable or portable

DESCRIPTION

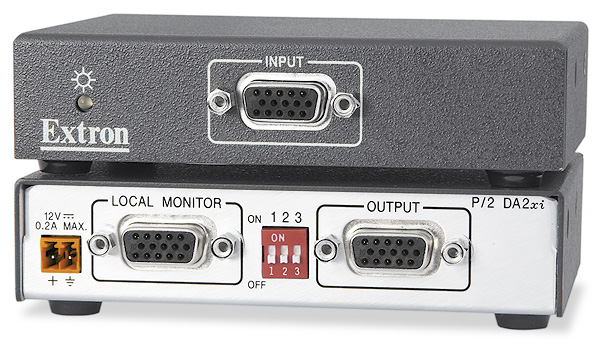

The Extron P/2 DA2xi and P/2 DA2xi MT are one input, two output, VGA distribution amplifiers. Both models come in smaller-sized and durable metal enclosures that can be easily installed in small, tight places. They're small and portable enough to fit into a briefcase for presenters on-the-go. Each model offers 350 MHz (-3dB) of RGB video bandwidth, and are compatible with VGA-QXGA graphic cards, projectors and flat panel displays. Adjustable gain and peaking are DIP switch-selectable.The P/2 DA2xi MT also includes stereo audio, and features a 3.5 mm female jack for audio input and a captive screw connector for balanced or unbalanced stereo output. The P/2 DA2xi includes a detachable, high performance, Extron six foot male to male VGA cable, while the P/2 DA2xi MT includes a detachable six foot male to male VGA with audio cable.Because the P/2 DA2xi and P/2 DA2xi MT are housed in quarter rack width metal enclosures, there are a number of versatile mounting options available to suit virtually any application or environment. With an optional Rack Shelf Kit, either model can be rack-mounted alone or with three other quarter rack width AV products.There are also optional mounting kits available so the P/2 DA2xi and P/2 DA2xi MT can be mounted under a desk or next to a projector.
Features
* Input: One female 15-pin HD connector
* Outputs: Two female 15-pin HD connectors
* 350 MHz (-3 dB) RGB bandwidth, fully loaded
* Compatible with VGA-QXGA resolutions
* Gain and peaking controls
* DIP-switch selectable input and output sync impedance
* Power and source signal indicator
* Includes detachable 6' (2 m) male-to-male VGA input cable
* ID bits routed to local monitor output
* Rack-mountable or portable
* Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
Note: Previous versions of this model could be powered via pin 9 of a computer's VGA connector. Extron has discontinued this feature in order to prevent interference with the operation of some computer graphic cards.
