OVERVIEW
Key Features
* Additional input accepts balanced/unbalanced mono line level audio signals for mixing with any of the four switchable inputs
* Audio input gain and attenuation
* Controllable via TouchLink® Control System, MediaLink® Controller, front panel buttons, or RS-232
* Rack-mountable, 1U, quarter rack width metal enclosure
* Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01
DESCRIPTION

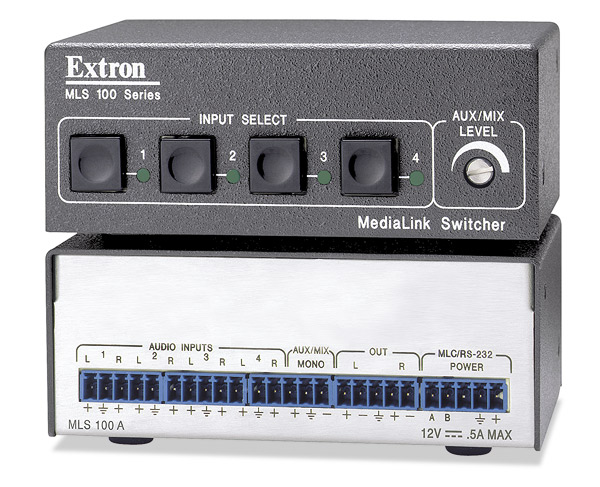

The Extron MLS 100 A Switcher is a compact, four-input stereo audio switcher. Inputs one through four provide unbalanced audio while an additional input is an active auxiliary line level mono audio input that can be mixed with any of the other four selectable inputs. When used with a TouchLink® Control System or MediaLink® Controller, input selection and volume control are easily achieved using RS-232 or the controller's user interface. Input selection can also be controlled using the MLS 100 A switcher's front panel buttons.Housed in a quarter rack width metal enclosure, the MLS 100 A is ideal for installation in podiums and other space-constrained areas.
The CSR 6 Captive Screw to RCA Audio Adapter is available as an optional output adaptor, converting the captive screw output of the MLS 100 A to a pair of female RCA connectors.
Features
* Inputs: Four switchable inputs on captive screw connectors
* Output: Captive screw connector
* Additional input accepts balanced/unbalanced mono line level audio signals for mixing with any of the four switchable inputs
* Audio input gain and attenuation — Gain or attenuation can be adjusted for each input to eliminate noticeable differences when switching between sources.
* Controllable via TouchLink® Control System, MediaLink® Controller, front panel buttons, or RS-232 — The switchers can be controlled using the front panel backlit buttons or RS-232. An optional TouchLink Touchpanel Control System or MediaLink Controller may be connected to the RS-232 port to provide a simple and intuitive user interface for the MLS Switchers, and the entire room.
* Rack-mountable, 1U, quarter rack width metal enclosure
* Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
