OVERVIEW

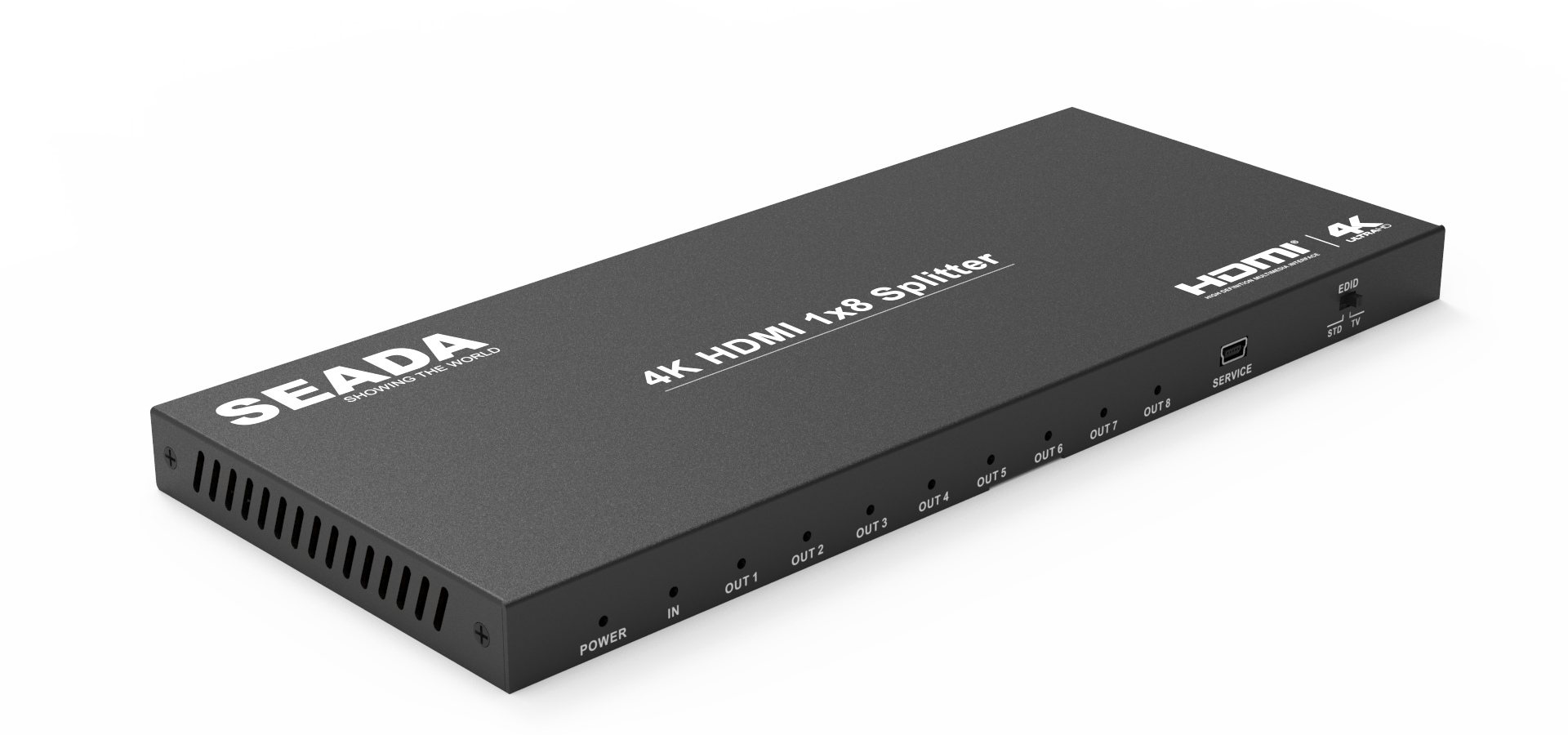

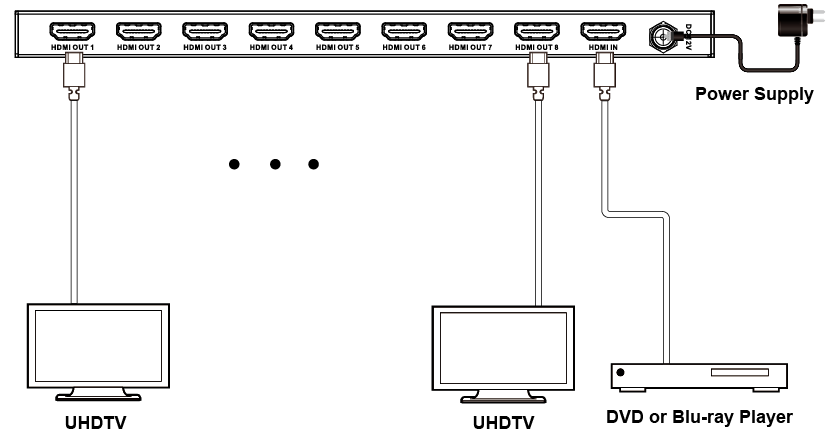

18Gbps 1×8 HDMI Splitter is an advanced solution for splitting single HDMI signal to 8 HDMI outputs synchronously. It supports up to 18Gbps bandwidth, HDMI 2.0b/HDCP 2.2 content up to 4K@60Hz 4:4:4. It can be set the COPY/ AUTO EDID configuration.
Supporting the latest features you can be assured of reliable and high quality HDMI distribution.
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
SPECIFICATIONS
| TECHNICAL |
|
| HDMI COMPLIANCE |
HDMI 2.0B |
| HDCP COMPLIANCE |
HDCP 2.2 |
| VIDEO BANDWIDTH |
594MHZ/18GBPS |
| VIDEO RESOLUTIONS |
480I ~1080P50/60HZ, 4KX2K@24/30HZ, 4K2K@60HZ |
| HDMI AUDIO FORMATS |
PCM 2CH, LPCM 7.1/5.1CH, DOLBY DIGITAL, DTS 5.1,
DOLBY DIGITAL+, DOLBY TRUEHD, DTS-HD MASTER AUDIO,
DOLBY ATMOS AND DTS:X
|
| ESD PROTECTION |
HUMAN BODY MODEL—±8KV (AIR-GAP DISCHARGE) &
±4KV (CONTACT DISCHARGE)
|
| CONNECTIONS |
|
| INPUT PORTS |
1×HDMI TYPE A (19-PIN FEMALE)
1×SERVICE (MICRO USB, UPDATE PORT)
|
| OUTPUT PORTS |
8×HDMI TYPE A (19-PIN FEMALE） |
| MECHANICAL |
|
| HOUSING |
METAL ENCLOSURE |
| SILKSCREEN COLOR |
BLACK |
| DIMENSIONS |
243MM (W) × 102MM (D) × 16MM (H) |
| WEIGHT |
572G |
| POWER SUPPLY |
INPUT: AC100 – 240V 50/60HZ, OUTPUT: DC 12V/1A
(US/EU STANDARDS, CE/FCC/UL CERTIFIED)
|
| POWER CONSUMPTION |
6.15W |
| OPERATION TEMPERATURE |
-10°C ~ 50°C / 14°F ~ 122°F |
| STORAGE TEMPERATURE |
-20°C ~ 60°C / -4°F ~ 140°F |
| RELATIVE HUMIDITY |
20~90% RH (NON-CONDENSING) |
