OVERVIEW

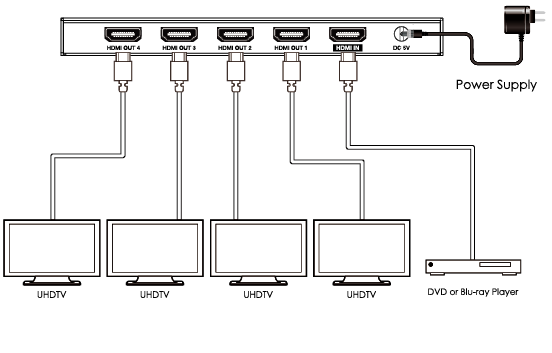

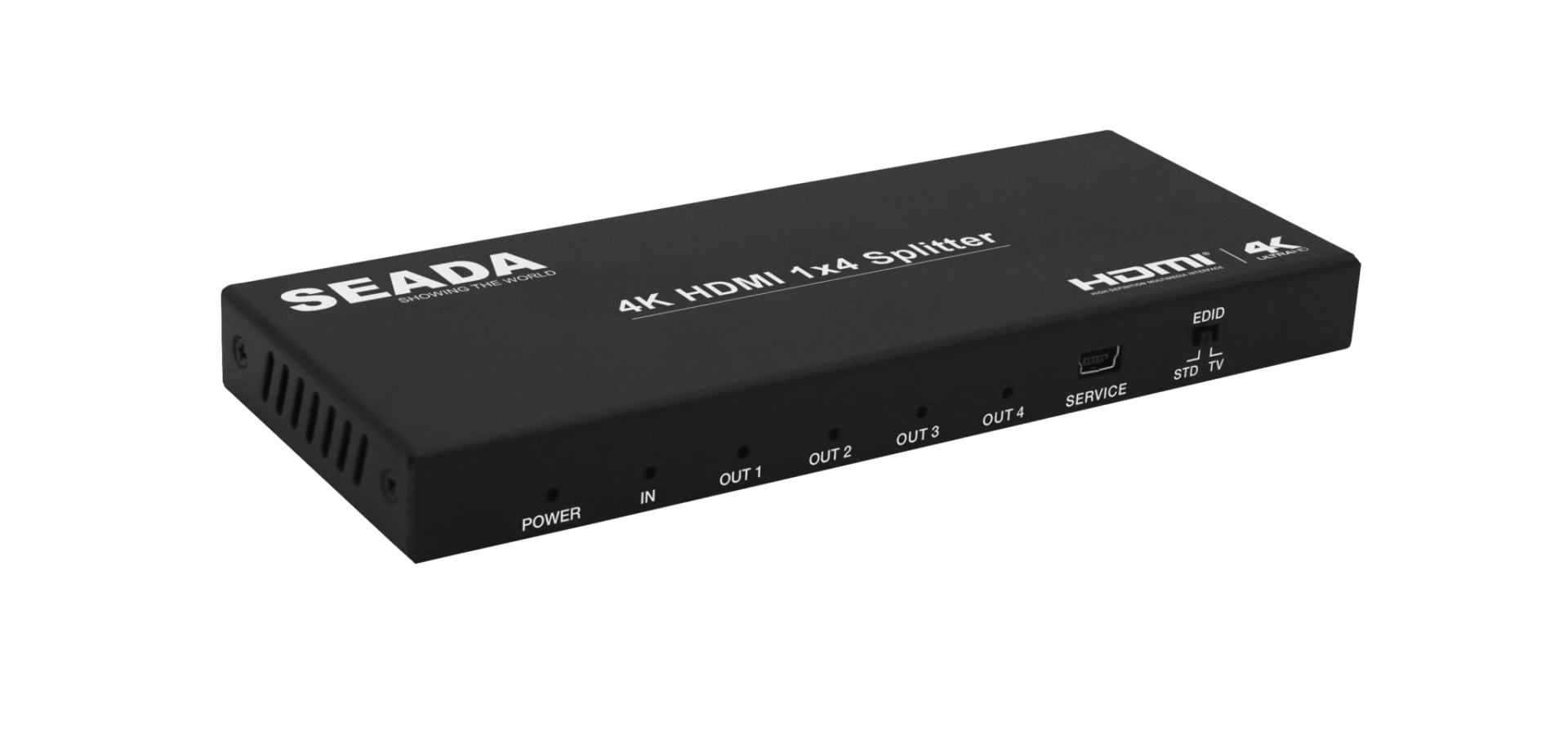

1×4 HDMI 18Gbps Splitter is an advanced solution for splitting a single HDMI signal to 4 HDMI displays. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz 4:4:4 and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss.
(Supporting the latest features you can be assured of reliable and high quality HDMI distribution.)
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
SPECIFICATIONS
| TECHNICAL |
|
| VIDEO BANDWIDTH |
600MHZ/18GBPS |
| INPUT PORTS |
1×HDMI TYPE A[19-PIN FEMALE] |
| OUTPUT PORTS |
4×HDMI TYPE A[19-PIN FEMALE] |
| VIDEO RESOLUTIONS |
480I ~1080P50/60, 4KX2K@24/30, 4K2K@60HZ |
| ESD PROTECTION |
HUMAN BODY MODEL — ±8KV (AIR-GAP DISCHARGE) & ±4KV (CONTACT DISCHARGE) |
| POWER SUPPLY |
5V/1A DC (US/EU STANDARDS, CE/FCC/UL CERTIFIED) |
| DIMENSIONS |
63MM (W) × 163MM (D) × 16MM (H) |
| WEIGHT |
260G |
| CHASSIS MATERIAL |
METAL |
| SILKSCREEN COLOR |
BLACK |
| OPERATION TEMPERATURE |
32 – 104°F / 0 – 40°C |
| STORAGE TEMPERATURE |
-4 – 140°F / -20 – 60°C |
| RELATIVE HUMIDITY |
20 – 90% RH (NO CONDENSATION) |
| POWER CONSUMPTION |
2W |
