OVERVIEW

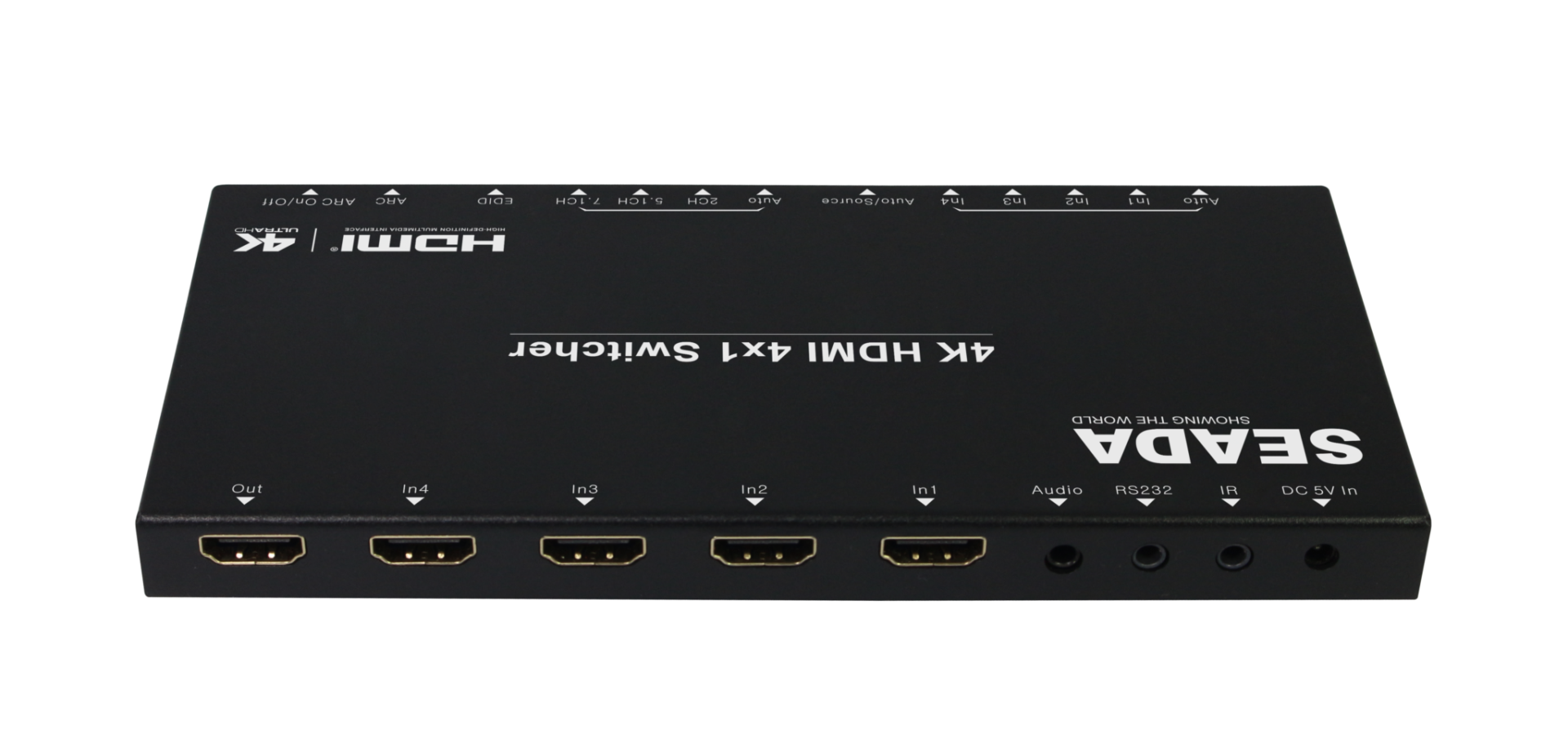

This is a high performance HDMI 4×1 switcher that supports HDTV formats up to 4Kx2K@60Hz and all HDMI 3D TV formats. It can extract HDMI stream audio to separate digital and analog audio output.

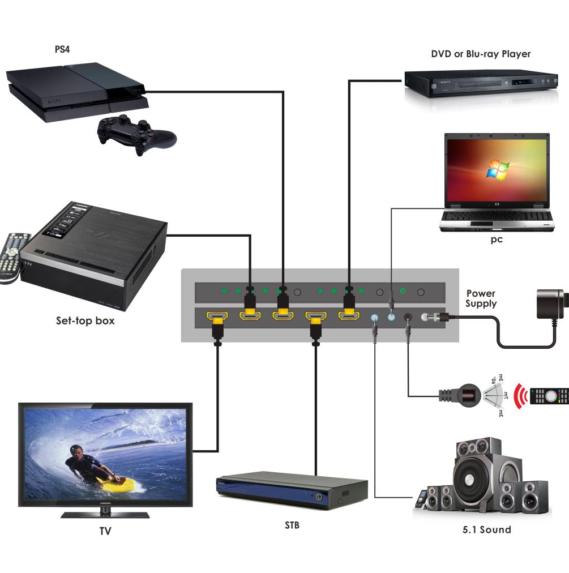

This product supports HDCP repeater/CEC/ARC functions. Select any of the inputs by front panel button or IR Remote, the corresponding indicator LED on the front panel will be illuminated.
SPECIFICATIONS
| FREQUENCY BANDWIDTH |
18GBPS |
| INPUT PORTS |
4 HDMI FEMALE PORTS, 1 IR RECEIVE PORT AND 1RS232 PORT |
| OUTPUT PORT |
1 HDMI FEMALE PORT AND 1 L/R & OPTICAL PORT |
| HDMI AUDIO OUTPUT |
PCM2.1/5.1/7.1CH,DOLBY5.1, DTS5.1, DOLBY-TRUEHD, DTS-HD |
| ESD PROTECTION |
HUMAN-BODY MODEL：
±8KV (AIR-GAP DISCHARGE) , ±4KV (CONTACT DISCHARGE) |
| DIMENSIONS |
180 (D) X85 (W) X 11.6 (H) |
| WEIGHT |
300G |
| POWER CONSUMPTION |
MAX 2.5W |
| OPERATING TEMPERATURE |
0°C ~ 40°C / 32°F ~ 104°F |
| STORAGE TEMPERATURE |
-20°C ~ 60°C / -4°F ~ 140°F |
