OVERVIEW

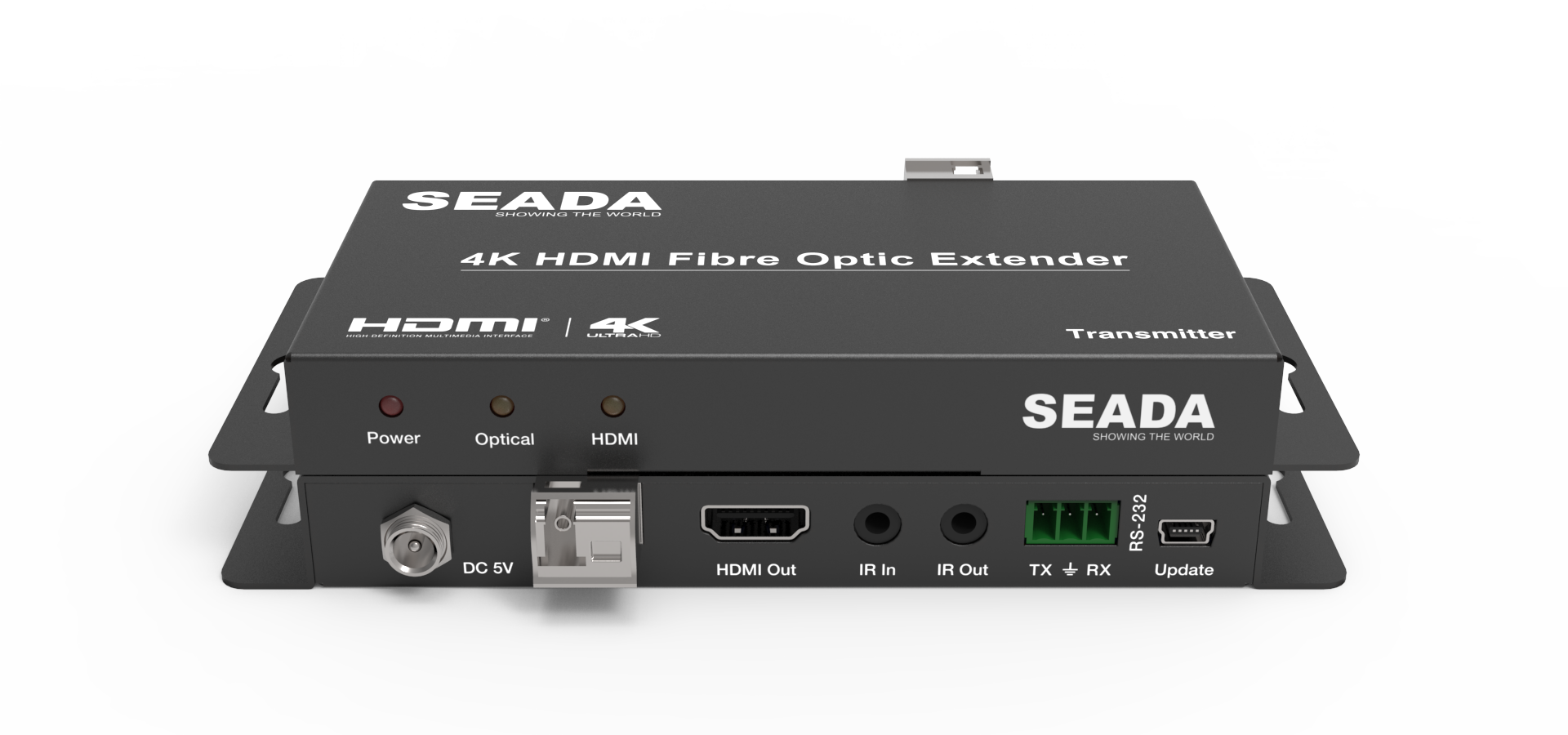

The HDMI over Optical Fiber Extender can extend HDMI signal up to 4K Ultra HD over 3300 feet/1000 meters (Single-mode cable) or 1000 feet/300 meters (Multi-mode cable) to an HDMI compatible display.
It also supports bi-directional infrared control and RS-232 signals transmission. It can allow you to easily control your DVD player at TV side or control your TV at the DVD player side when using this extender.
SPECIFICATIONS
| TECHNICAL |
|
| HDMI COMPLIANCE |
HDMI 2.0B |
| HDCP COMPLIANCE |
HDCP 2.2 AND HDCP 1.4 |
| VIDEO BANDWIDTH |
18 GBPS |
| VIDEO RESOLUTIONS |
UP TO 4K2K@50/60HZ(YUV4:4:4),4K2K@30HZ,1080P@120HZ, AND 1080P 3D@60HZ |
| COLOR SPACE |
RGB, YCBCR 4:4:4, YCBCR 4:2:2 |
| COLOR DEPTH |
8-BIT, 10-BIT, 12-BIT |
| HDMI AUDIO FORMATS |
LPCM 2/5.1/7.1CH, DOLBY DIGITAL, DTS 5.1, DOLBY DIGITAL+, DOLBY TRUEHD, DTS-HD MASTER AUDIO, DOLBY ATMOS, DTS:X |
| OPERATION RANGE |
MAX 2.5W |
| OPERATING TEMPERATURE |
UP TO 3300 FEET/1000 METERS OVER SINGLE-MODE FIBER CABLE
UP TO 1000 FEET/300 METERS OVER MULTI-MODE FIBER CABLE
|
| IR FREQUENCY |
20KHZ – 60KHZ |
| RS-232 BAUD RATE |
4800-115200BPS |
| ESD PROTECTION |
HUMAN BODY MODEL — ±8KV (AIR-GAP DISCHARGE) & ±4KV (CONTACT DISCHARGE) |
|
CONNECTIONS
|
|
| TRANSMITTER |
INPUTS: 1X HDMI TYPE A [19-PIN FEMALE]
1X IR IN [3.5MM STEREO MINI-JACK]
1X RS-232 [3.81MM PHOENIX CONNECTOR]
OUTPUTS: 1X OPTICAL FIBER OUT [LC FEMALE]
1X IR OUT [3.5MM STEREO MINI-JACK]
|
| RECEIVER |
INPUTS: 1X OPTICAL FIBER IN [LC FEMALE]
1X IR IN [3.5MM STEREO MINI-JACK]
OUTPUTS: 1X HDMI TYPE A [19-PIN FEMALE]
1X IR OUT [3.5MM STEREO MINI-JACK]
1X RS-232 [3.81MM PHOENIX CONNECTOR]
|
|
MECHANICAL
|
|
| HOUSING |
METAL ENCLOSURE |
| COLOUR |
BLACK |
| DIMENSIONS |
100MM [W] X 65MM [D] X 25.6MM [H] |
| WEIGHT |
TX: 256G RX: 260G |
| POWER SUPPLY |
INPUT: AC100 – 240V 50/60HZ
OUTPUT: DC 5V/1A (US/EU STANDARDS, CE/FCC/UL CERTIFIED)
|
| POWER CONSUMPTION |
3W (MAX) |
| OPERATION TEMPERATURE |
32 – 104°F / 0 – 40°C |
| STORAGE TEMPERATURE |
-4 – 140°F / -20 – 60°C |
| RELATIVE HUMIDITY |
20 – 90% RH (NO CONDENSATION) |
