OVERVIEW
Key Features
* 400 MHz (-3 dB) RGB video bandwidth
* Compatible with VGA-QXGA resolutions
* Sync signal buffering
* Variable peaking control
* Mounts in products that accept a double-space MAAP - Mini Architectural Adapter Plate
* Available in black or white
DESCRIPTION

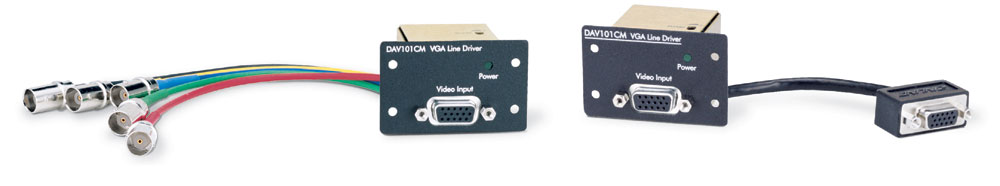

The Extron DAV101CM is a VGA line driver module designed to amplify the VGA signal from a laptop, desktop computer, or other VGA-QXGA sources. The DAV101CM buffers and equalizes the RGB and sync signals for long cable runs of up to 250 feet (75 meters) or more. The 15-Pin HD models include a 6" (15.2 cm) cable terminated with a 15-pin HD female connector. The BNC models include a 6" (15.2 cm) pigtail with five color-coded conductors terminated with female BNCs.The DAV101CM is mounted in a double-space MAAP - Mini Architectural Adapter Plate that installs in CPM Series modular connector plates and other products that accept MAAPs. It is available in black or white. An external universal energy efficient power supply is included, part # 70-775-01.
Features
* Input: Female 15-pin HD connector
* Outputs: Female 15-pin HD connector or five BNC connectors on six-inch pigtails
* 400 MHz (-3 dB) RGB video bandwidth
* Compatible with VGA-QXGA resolutions
* Sync signal buffering
* Variable peaking control
* Mounts in products that accept a double-space MAAP - Mini Architectural Adapter Plate
* Available in black or white
* Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
