OVERVIEW
Key Features
* Automatically adapts to SMPTE and ITU digital video standards for 3G-SDI, HD-SDI, and SDI
* Supports data rates from 270 Mbps to 2.97 Gbps
* Automatic input equalization improves signal transmission distances: SDI - adds up to 500 feet (150 m) on RG6HD-SDI - adds up to 400 feet (120 m) on RG6
* Automatic output reclocking
* Passes embedded audio, ancillary ID, and metadata information
* Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01
DESCRIPTION

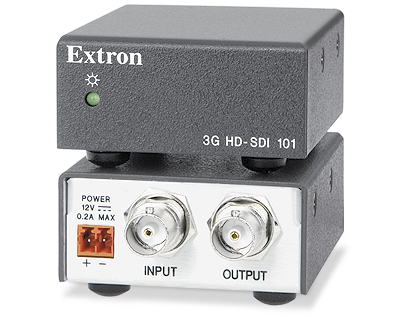

The 3G HD-SDI 101 is a one-input, one-output cable equalizer for multi-rate SDI digital video signals. It offers a convenient, economical solution for sending multi-rate SDI digital video signals over long coaxial cable runs. The 3G HD-SDI 101 supports all common serial digital video data rates up to 2.97 Gbps, and also passes embedded audio and other ancillary data allowed by the SMPTE and ITU specifications. Automatic input equalization adds up to 500 feet (150 m) for SDI data rates, and up to 400 feet (120 m) for HD-SDI data rates including 3G-SDI video. The 3G HD-SDI 101 is housed in a one-eighth rack width, metal enclosure, providing integration-friendly mounting options into both new and existing AV systems.
The 3G HD-SDI 101 also features output reclocking, which reshapes and restores timing of digital video signals at the output, eliminating high frequency jitter and providing AV system designers with additional headroom when connecting multiple devices.
Features
* Input: One female BNC connector
* Output: One female BNC connector
* Automatically adapts to SMPTE and ITU digital video standards for 3G-SDI, HD-SDI, and SDI
* Supports data rates from 270 Mbps to 2.97 Gbps
* Automatic input equalization improves signal transmission distances: SDI - adds up to 500 feet (150 m) on RG6HD-SDI - adds up to 400 feet (120 m) on RG6
* Automatic output reclocking — Reshapes and restores timing of digital video signals at each output, eliminating high frequency jitter and provides AV system designers with additional headroom when connecting multiple devices.
* Passes embedded audio, ancillary ID, and metadata information
* LED power indicator — LED will illuminate green when power is detected.
* One-eighth rack width metal enclosure is compact enough to be placed behind a display
* Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
