DESCRIPTION

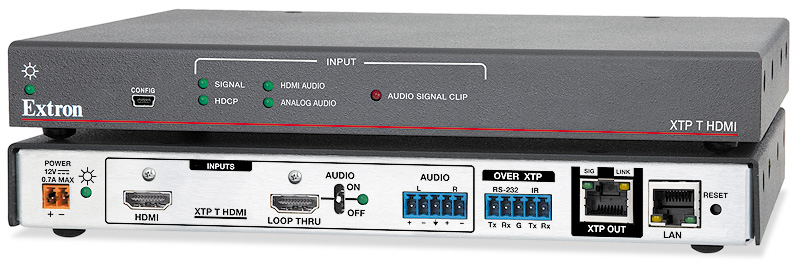

The Extron XTP T HDMI is an XTP® transmitter that sends video, audio, bidirectional RS-232 and IR, and Ethernet up to 330 feet (100 m) over a shielded CATx cable. It is HDCP compliant, and supports computer and video resolutions up to 1920x1200, including 1080p/60 Deep Color and 2K. The transmitter also allows Ethernet extension and insertion of bidirectional RS-232 and IR for LAN access and AV device control at remote locations. The XTP T HDMI transmitter works with XTP Systems® for signal distribution and long-distance transmission between remote endpoints.
The HDCP-compliant XTP T HDMI enables the reliable, long distance transmission of HDMI signals, supporting Deep Color up to 12-bit, 3D, and HD lossless audio formats. In addition, DDC channels are actively buffered, allowing EDID and HDCP communication to be maintained between a source and display. Continuous communication ensures device compatibility and optimal signal transmission between devices. As an added benefit, the XTP T HDMI provides an active HDMI output that includes support of embedded audio, allowing connection of a local monitor for operation visibility and troubleshooting.
The transmitter supports multiple embedded digital audio formats with HDMI embedded audio available on the HDMI connector. It includes the capability to embed separate balanced/unbalanced analog stereo audio signals in place of HDMI-embedded audio for extended transmission. To precisely control the audio, the XTP T HDMI provides audio input gain and attenuation. This wide variety of audio transmission and control features helps to simplify system design and reduce the number of cable runs between endpoints.
The XTP T HDMI includes an RS-232 and IR insertion port, allowing bidirectional control of an AV device using the one cable. This feature simplifies integration with a control system for managing source devices. Additionally, centralized 10/100 Ethernet communication can be implemented via Ethernet extension port to reduce the number of independent network drops required within a system.
To further simplify system design, the transmitter can be powered by the matrix switcher over the same cable that transmits the AV and inserted signals. This capability speeds up installation at remote endpoints by eliminating the need to provide AC power to the device. Housed in a 1" (2.5 cm) high, half rack width metal enclosure, the remote powering capabilities and low profile design of the XTP T HDMI transmitter allow for discreet placement in space-challenged environments.
Extron recommends Extron-certified XTP DTP 24 shielded twisted pair cable, shielded RJ-45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron XTP Systems. The XTP DTP 24 cable is certified to 475 MHz, and utilizes a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.
Extron XTP Systems
Extron XTP Systems provide a completely integrated switching and distribution solution for multiple digital and analog formats. They support local connectivity as well as extended transmission capability for sending high resolution video, audio, RS‑232, and Ethernet up to 330 feet (100 meters) over a shielded CATx cable and even greater distances over fiber optic cabling. Each system is HDCP compliant and delivers ultra‑fast, highly reliable digital switching with Extron's SpeedSwitch® Technology.
At the heart of a system is an XTP CrossPoint matrix switcher. The modular matrix switchers are expandable from 4x4 to 64x64, depending on frame size, and can be populated with a wide variety of XTP I/O matrix boards. Input and output boards provide direct HDMI, DVI, VGA, video, and audio connections to local sources and displays, and signal extension to remote endpoints when using XTP transmitters and receivers. The matrix switcher can also provide power to a remote XTP device over CATx cabling, depending on transmitter model.
The online XTP System Builder gives convenient access for complete system design. The tool also features a printable bill of materials, pricing, and quote submittal. Once the order is confirmed and received, the included XTP System Configuration Software enables easy setup and configuration right out of the box.
To configure, operate, and monitor the system in real time, user-friendly control software offers a complete view of all XTP devices from a computer. With hot‑swappable modular components, a wide selection of XTP transmitters and receivers, and advanced 24/7 system monitoring, XTP Systems are designed to provide continuous, trouble‑free operation in the most critical applications.
Features
* Transmits video, audio, bidirectional RS-232 and IR, and Ethernet up to 330 feet (100 meters) over a shielded CATx cable — The XTP T HDMI provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
* Supports computer and video resolutions up to 1920x1200, including 1080p/60 Deep Color and 2K — Supports digital signal transmission up to 330 feet over a shielded twisted pair cable, maintaining superior image quality at the highest resolutions.
* HDMI loop-through with selectable audio control — The XTP T HDMI transmitter features an active HDMI output with support for embedded audio for connection to a local monitor.
* HDCP compliant — Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
* Remote power capability — For simplified installation, the transmitter can be remotely powered by the XTP matrix switcher over the twisted pair connection.
* Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
* Compatible with CATx shielded twisted pair cable — The XTP T HDMI fully supports a maximum transmission distance of 330 feet (100 meters) for all compatible resolutions when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid center conductor sizes of 24 AWG or better is recommended for optimal performance.
* Bidirectional RS-232 and IR insertion for AV device control — Bidirectional RS-232 control and IR signals can be inserted into the XTP output, allowing a remote device to be controlled without the need for additional cabling.
* Supported HDMI specification features include data rates up to 6.75 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats
* User-selectable HDCP authorization — Allows the unit to appear HDCP compliant or non‑HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non‑HDCP mode.
* EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.
* Key Minder® continuously verifies HDCP compliance for quick, reliable switching — Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source to multiple displays.
* HDCP Visual Confirmation provides a green signal when encrypted content is sent to a non-compliant display — A full-screen green signal is sent when HDCP-encrypted content is transmitted to a non‑HDCP compliant display, providing immediate visual confirmation that protected content cannot be viewed on the display.
* Ethernet extension — Centralized 10/100 Ethernet communication can be implemented via an Ethernet pass-through port to reduce the amount of independent network drops required within a system.
* Internal color bars test pattern for setup and calibration
* Supports multiple embedded audio formats — The XTP T HDMI is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
* Selectable analog stereo audio input embedding — By embedding stereo audio into the signal stream, the transmitter supports balanced/unbalanced audio for extended transmission. This feature enables direct connection of separate stereo audio signals from a laptop, Blu-ray Disc player, or other device.
* Audio input gain and attenuation — Allows the level of gain or attenuation to be set, eliminating noticeable volume differences when switching between sources.
* Supports EDID and HDCP transmission — DDC channels are actively buffered, allowing continuous communication between source and display.
* LED indicators for signal presence, HDCP, and power — Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
* RJ-45 signal and link status LED indicator for XTP ports — Provides a means for validating signal flow and operation from transmitter to receiver, allowing quick identification of connectivity issues.
* Compatible with all XTP products — XTP Systems provide a flexible signal switching and distribution solution that is completely integrated, ensuring reliable routing of multiple digital and analog formats.
* Front panel USB configuration port
* UL 2043 plenum rated — The XTP T HDMI meets UL 2043 for smoke and heat release for installation within a plenum airspace above a drop ceiling - power supply excluded. Above-the-ceiling placement conceals the transmitter to prevent theft, and is convenient for installing equipment when space inside the room is limited.
* Easy setup and commissioning with Extron XTP System Configuration Software
* JITC Certified — Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
* 1" (2.5 cm) high, half rack width metal enclosure — Compact, low profile enclosure for discreet placement and concealment.
* Includes LockIt® HDMI cable lacing brackets
* Highly reliable, energy-efficient external universal power supply included, replacement part #70-775-01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
