DESCRIPTION

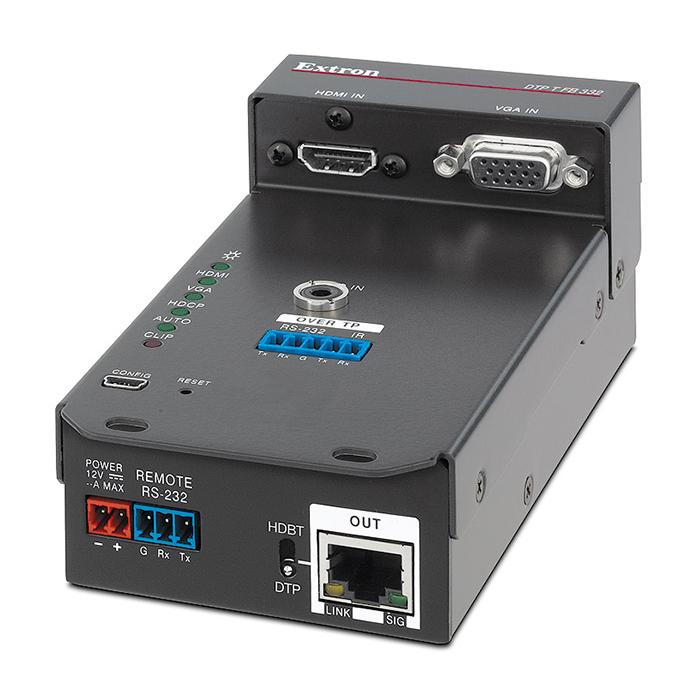

The Extron DTP T FB 332 is a two input transmitter that sends HDMI or VGA, audio, and control up to 330 feet (100 meters) over a shielded CATx cable. The DTP® transmitter is compatible with floor boxes from OBO Bettermann, MK by Honeywell, Electraplan, and PUK. The DTP T FB 332 supports video signals at resolutions up to 1920x1200, including 1080p/60 and 2K. It features analog stereo audio embedding, plus automatic switching between inputs and RS‑232 remote control for easy operation in unmanaged locations. The transmitter also supports bidirectional RS‑232 and IR pass-through for AV device control at remote locations. Designed for DTP Systems, the DTP T FB 332 can be remotely powered by Extron DTP CrossPoint® matrix switchers or other DTP 330-enabled products.The HDCP‑compliant DTP T FB 332 provides reliable switching and transmission of HDMI signals. For simplified operation, the DTP T FB 332 can automatically switch between the digital and analog sources. Stereo analog audio can be embedded onto the digital video output signal for transport over DTP. To suit the needs of the application, there is also the option to send analog audio alongside the video and control signals over the shielded twisted pair cable to a DTP 330‑enabled matrix switcher, switcher, or signal processor. In addition, the analog input can be assigned to either of the two video inputs, or it can be set to follow the input switch.
To enhance and simplify integration of sources and displays, and to help ensure optimal system performance, the DTP T FB 332 features EDID Minder®. EDID Minder is an Extron‑exclusive technology that manages EDID communication between the display device and input sources to ensure that the correct video formats are displayed reliably.
The DTP T FB 332 supports simultaneous transmission of bidirectional RS‑232 and IR signals from a control system for AV device control. For added installation flexibility, the DTP T FB 332 transmitter can be remotely powered over the shielded twisted pair cable by a DTP 330‑enabled product. This simplifies installation and allows both devices to share one power supply. The DTP T FB 332 can be integrated with an Extron DTP CrossPoint Presentation Matrix Switcher, or other DTP 330‑enabled products to support sources at remote locations. The unique form factor of the transmitter provides a flexible, floor box mounting solution, offering convenient input locations within configurable room environments and a range of other applications.
The DTP output can be configured for compatibility with HDBaseT‑enabled displays to send digital video and embedded audio, plus bidirectional RS‑232 and IR signals up to 330 feet (100 meters) over a shielded CATx cable.
Extron recommends Extron-certified XTP DTP 24 shielded twisted pair cable, shielded RJ-45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron DTP Series products. The XTP DTP 24 cable is certified to 475 MHz and utilizes a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.
Features
* Designed to mount in a variety of floor boxes — The unique form factor provides a flexible, floor box mounting solution that is compatible with offerings from OBO Bettermann - GB2 and GB3 slots, MK by Honeywell, Electraplan, and PUK.
* Transmits HDMI or analog video, control, and analog audio up to 330 feet (100 meters) over a shielded CATx cable — The DTP T FB 332 provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
* Inputs: One HDMI, one VGA on 15‑pin HD, one 3.5 mm stereo mini jack for audio
* Output: One DTP® 330 twisted pair output on RJ-45
* Auto‑switching between inputs — Auto‑switching allows for simple, unmanaged installation within floor boxes. When multiple inputs are active, the switching priority is configurable.
* Supports computer and video resolutions up to 1920x1200, including 1080p/60 and 2K — The DTP T FB 332 supports digital signal transmission up to 330 feet (100 meters) over a shielded twisted pair cable and maintains superior image quality at the highest resolutions.
* Analog stereo audio embedding — Analog stereo audio signals can be selectively embedded onto the digital video output signal and transported over DTP. The HDMI input can be set to pass the embedded digital audio, embed the analog audio, or to automatically embed the analog audio when no digital audio is detected.
* Remote power capability — For simplified installation, the transmitter can be remotely powered by a DTP 330‑enabled product over the twisted pair connection.
* Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
* Compatible with CATx shielded twisted pair cable — The DTP T FB 332 fully supports a maximum transmission distance of 330 feet (100 meters) when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid center conductor sizes of 24 AWG or better is recommended for optimal performance.
* Accepts additional analog stereo audio signals — The DTP T FB 332 accepts stereo analog audio signals for simultaneous transmission over the same shielded twisted pair cable.
* Audio input assignment — The analog audio input can be assigned to any video input, or it can be set to follow the input switch.
* Supported HDMI specification features include data rates up to 6.75 Gbps, 3D, and HD lossless audio formats
* DTP output is compatible with HDBaseT‑enabled devices — The DTP output can be configured to send video and embedded audio, plus bidirectional RS‑232 and IR signals to an HDBaseT‑enabled display.
* Supports multiple embedded audio formats — The DTP T FB 332 is compatible with a broad range of multi‑channel audio signals, providing reliable operation with HDMI sources.
* Bidirectional RS‑232 and IR pass‑through for AV device control — Bidirectional RS‑232 control and IR signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
* Digital conversion of analog input signals — Analog signals are digitized, ensuring that a reliable, high quality digital video signal is sent to the output destination.
* HDCP compliant — Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
* User-selectable HDCP authorization — Allows the unit to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.
* EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.
* Supports EDID and HDCP transmission — DDC channels are actively buffered, allowing continuous communication between source and display.
* HDMI to DVI Interface Format Correction — Automatically enables or disables embedded audio and InfoFrames, and sets the correct color space for proper connection to HDMI and DVI displays.
* Automatic color bit depth management — Automatically adjusts color bit depth based on the display EDID, preventing color compatibility conflicts between source and display.
* Compatible with all DTP 330 Series receivers and DTP 330‑enabled products — Enables mixing and matching with desktop and wallplate receivers, as well as other DTP 330‑enabled products to meet application requirements.
* RS‑232 control port — Enables the use of serial commands for integration into a control system. Extron products use the SIS™ - Simple Instruction Set command protocol, a set of basic ASCII commands that allow for quick and easy programming.
* Front panel USB configuration port
* LED indicators for signal presence, HDCP, and power — Provides visual indication of system status for real‑time feedback and monitoring of key performance parameters.
* RJ‑45 signal and link LED indicators for DTP port — Provides a means for validating signal flow and operation, allowing quick identification of connectivity issues.
* Easy setup and commissioning with Extron's PCS - Product Configuration Software — Conveniently configure multiple products using a single software application.
New
* JITC Certified — Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
* Includes LockIt® HDMI cable lacing brackets
* Highly reliable, energy‑efficient external universal power supply included, replacement part #70‑775‑01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
