OVERVIEW
* Extends 4K & 1080p HDMI signals - connects two HDMI cables together to make longer transmission distances
* Supports 1080p60 @50m (30m in / 20m out); 4K @35m (20m in / 15m out)
* Supports 3840x2160 24Hz YCbCr 4:2:2 12-bit BT.2020 / HDR10@24Hz Blu-ray UHD
* For best performance we recommend you use this repeater with LINDY Gold HDMI cables
* Powered from the HDMI interface, no external power required
DESCRIPTIONS

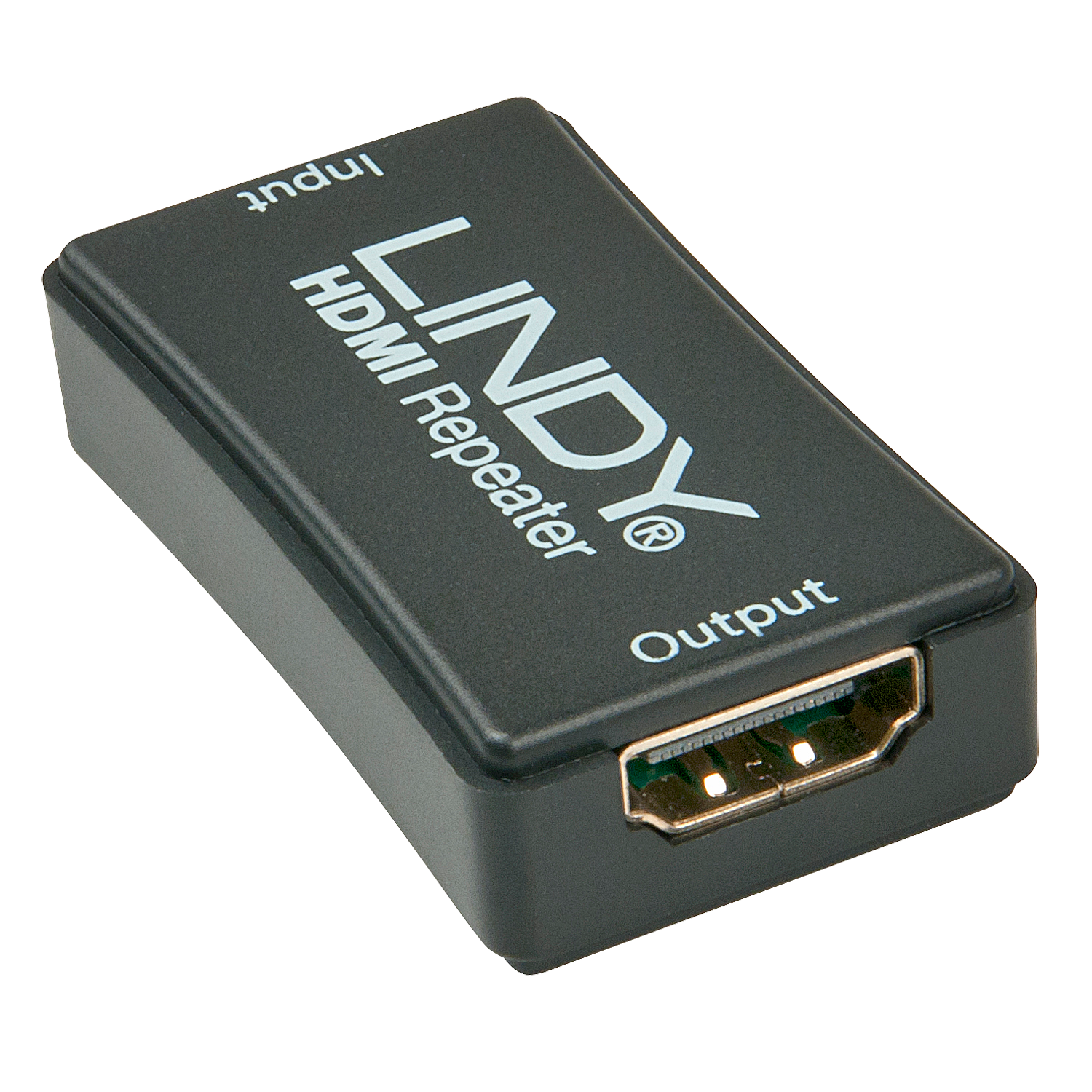

Featuring two female HDMI ports the HDMI Repeater is used to join two HDMI cables to make a longer connection than is possible using a single passive HDMI cable.
With support for both HDCP 1.4 and 2.2 the Repeater is suitable for use with modern Ultra HD 4K content in addition to existing Full HD 1080p signals.
The Repeater is capable of supporting up to 10.2 Gbps bandwidth and supports the following cable distances when using LINDY Gold HDMI cables , using lower grade cables will reduce the possible cable lengths:
* 4K 3840x2160p60, 35m: 15m In / 20m Out (4:2:0 8 bit per channel)
* 4K 3840x2160p30, 35m: 15m In / 20m Out (4:4:4 8 bit per channel)
* 1080p60/1080p 3D, 50m: 20m In / 30m Out (4:4:4 8 bit per channel)
Technical details
* Allows HDMI signals to be sent over long distances using standard HDMI cables
* Supports resolutions up to 4K 3840x2160p60, including 1080p 3D
* Supports 3840x2160 24Hz YCbCr 4:2:2 12-bit BT.2020 / HDR10@24Hz Blu-ray UHD
* Maximum Input/Output Cable lengths (using LINDY Premium Gold 24AWG Cable):
* 4K 3840x2160p60: 15m In / 20m Out (4:2:0 8 bits per channel)
* 4K 3840x2160p30: 15m In / 20m Out (4:4:4 8 bits per channel)
* 1080p60/1080p 3D: 20m In / 30m Out (4:4:4 8 bits per channel)
* HDMI v1.4 & DVI 1.0 compliant, supports signals up to 3.4Gbps
* HDCP v1.4/2.2 pass-through
* Supports 8/10/12/16 bits per channel colour depth
* HDMI Audio pass-through
* Powered via HDMI Interface
* ABS Plastic housing
* Input and Output Connector: HDMI Type A female
* Dimensions: 50 x 27 x 15mm
* Operating temperature: approx. 0 to 40°C
* Storage temperature: approx. -20 to 60°C
