OVERVIEW
Key Features
* Provides connectivity between dual-mode DisplayPort equipped sources and DVI-D displays
* Passes EDID information from DVI-D display to the source
* Latching DisplayPort connector
* Supports signals up to 1920x1200 @ 60 Hz and 1080p/60
* Complies with VESA Interoperability Guideline
* Gold-plated contacts
DESCRIPTION

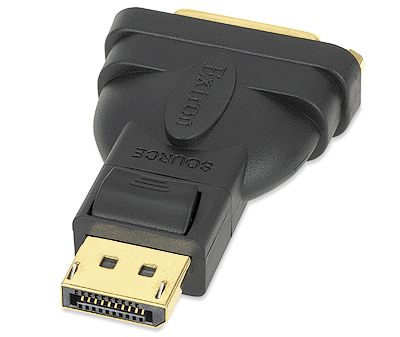

The Extron DP-DVIDF is an active, one-way adapter that enables transmission of signals from dual-mode DisplayPort equipped sources and DVI-D displays. It supports the DisplayPort Version 1.1a specification and resolutions to 1920x1200 @ 60 Hz and 1080p/60. The adapter features a latching DisplayPort male connector, providing a secure connection at the source. It is ideal for use when integrating DisplayPort equipped laptop computer and other devices with DVI-D equipped projectors or flat-panel displays.
Features
* Provides connectivity between dual-mode DisplayPort equipped sources and DVI-D displays
* Passes EDID information from DVI-D display to the source
* Latching DisplayPort connector
* Supports signals up to 1920x1200 @ 60 Hz and 1080p/60
* Complies with VESA Interoperability Guideline
* Gold-plated contacts
Note: This is a powered adapter and must be used directly at the DisplayPort source. It is not intended to be used at a DisplayPort video display. Do not use additional cables or adapters between the source output and the male end of the DisplayPort adapter.
