OVERVIEW
Key Features
* Certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
* High performance cable designed for transmission of computer video and ID bit signals
* Pin 9 is passed through from end to end
* Terminated with high quality VGA molded connectors
* VGA shell grounded for ESD electrostatic discharge protection
* Injection mold with overall foil shield for improved EMI - electromagnetic interference isolation
DESCRIPTION

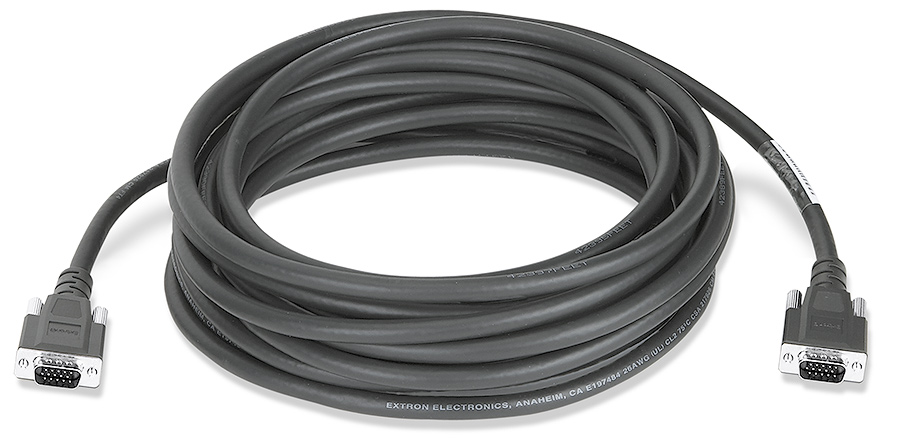

The Extron VGA M-M MD cable assemblies are designed for applications that require high performance transmission of VGA video signals. All ID bits and +5VDC power on Pin 9 are passed through, provided the computer has a graphics card that complies with VESA DDC standard, version 3. The Extron VGA M-M MD utilizes Extron MHRVGA Cable with 15-pin HD male molded connectors.
Features
* Certified for use with AVEdge, Cable Cubby®, and HSA surface access enclosures
* High performance cable designed for transmission of computer video and ID bit signals
* Pin 9 is passed through from end to end
* Terminated with high quality VGA molded connectors
* VGA shell grounded for ESD electrostatic discharge protection
* Injection mold with overall foil shield for improved EMI - electromagnetic interference isolation
* Utilizes Extron MHRVGA Cable, part # 22-220-03
* NEC CM rated, non-plenum cable
Note: Cables up to 3 feet (90 cm) in length are measured neck-to-neck, between the strain reliefs. Cables longer than 3 feet (90 cm) are measured tip-to-tip, including connectors.
