OVERVIEW
Key Features
* 350 MHz (-3 dB) RGB video bandwidth, fully loaded
* Compatible with RGBHV, RGBS, RGsB, RsGsBs, component video, S-video, and composite video signals
* Selectable gain and peaking
* AC or DC coupling per input
* Output muting control via contact closure
DESCRIPTION

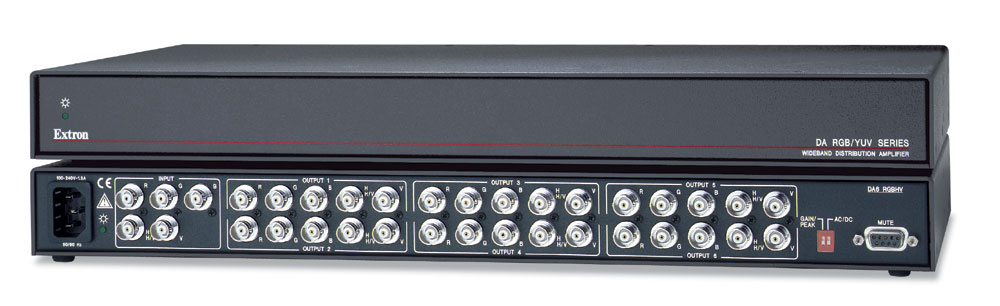

The Extron DA6 RGBHV is a six output, rack-mountable, analog distribution amplifier. It accepts and distributes RGBHV, RGBS, RGsB, RsGsBs, component video, S-video, and composite video on female BNC connectors. In addition, the DA6 RGBHV provides DIP switches for adjusting RGB gain and peaking, as well as for selecting AC or DC coupling. A 9-pin contact closure connector allows for output muting controls when used with a control system.With 350 MHz (-3 dB) video bandwidth, fully loaded, the DA6 RGBHV is perfect for maintaining signal integrity over long cable runs It includes an internal international power supply and is housed in a 1U, full rack width metal enclosure for mounting convenience.
Features
* Input: One set of female BNC connectors
* Output: Six sets of female BNC connectors
* 350 MHz (-3 dB) RGB video bandwidth, fully loaded
* Compatible with RGBHV, RGBS, RGsB, RsGsBs, component video, S-video, and composite video signals
* Selectable gain and peaking
* AC or DC coupling per input
* Output muting control via contact closure
* Internal universal power supply
* Rack mount kit included
* 1U, rack-mountable, durable, metal enclosure
